Proses ColorBase

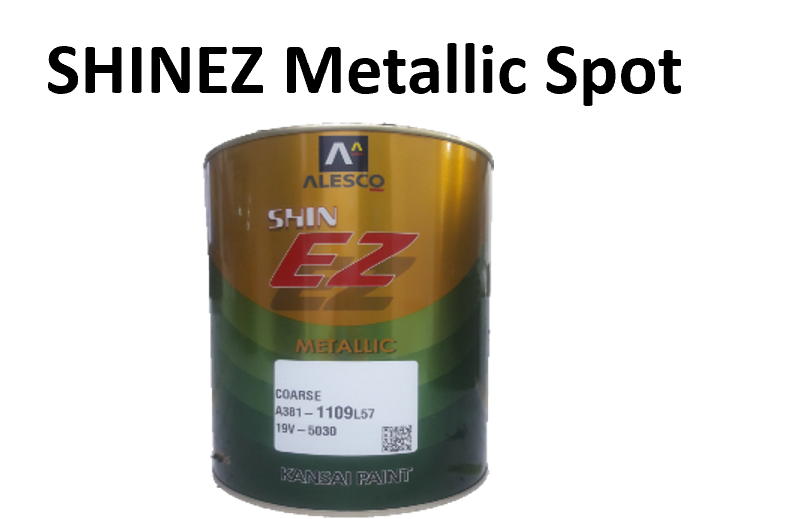

Produk SHIN EZ
Cara Spot Repair
Tipe Warna Metallic

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

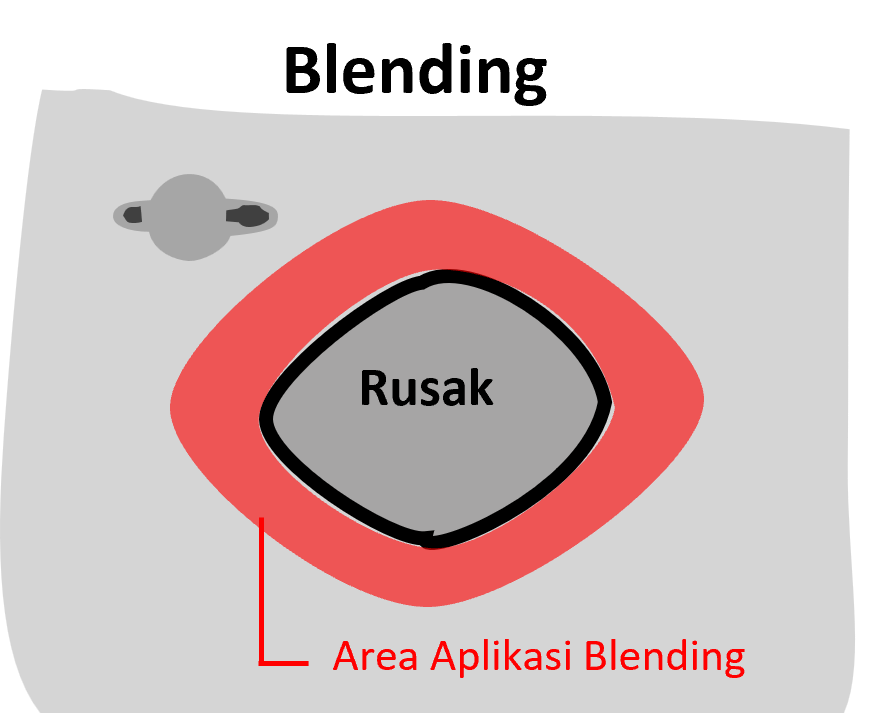

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area surfacer
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu spray lapis

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase Metallic
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

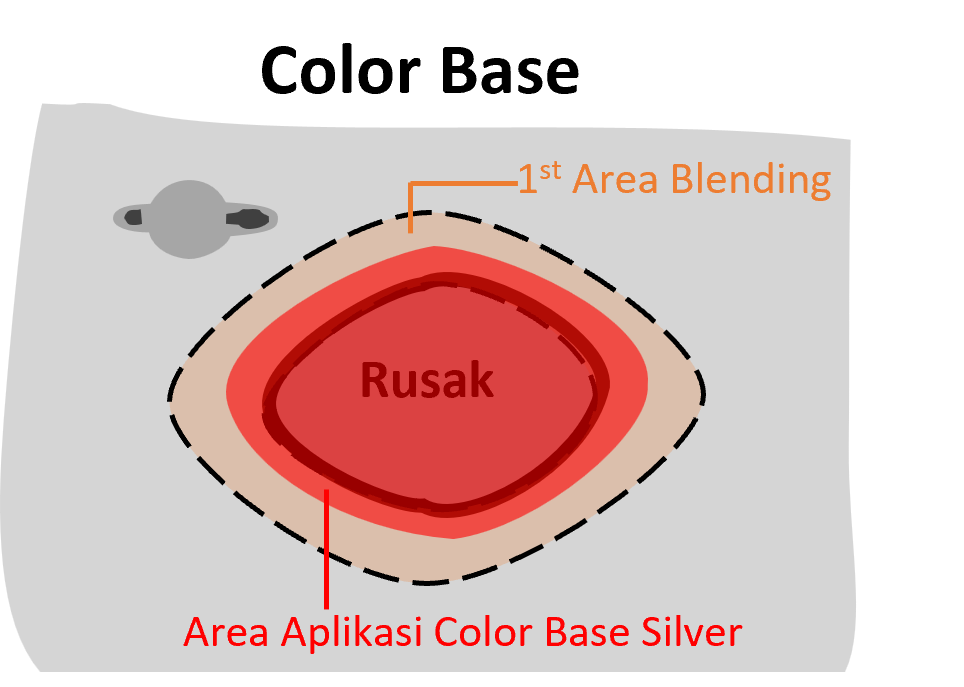

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 20cm 1/2 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Lapis 1 diaplikasikan menutupi area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

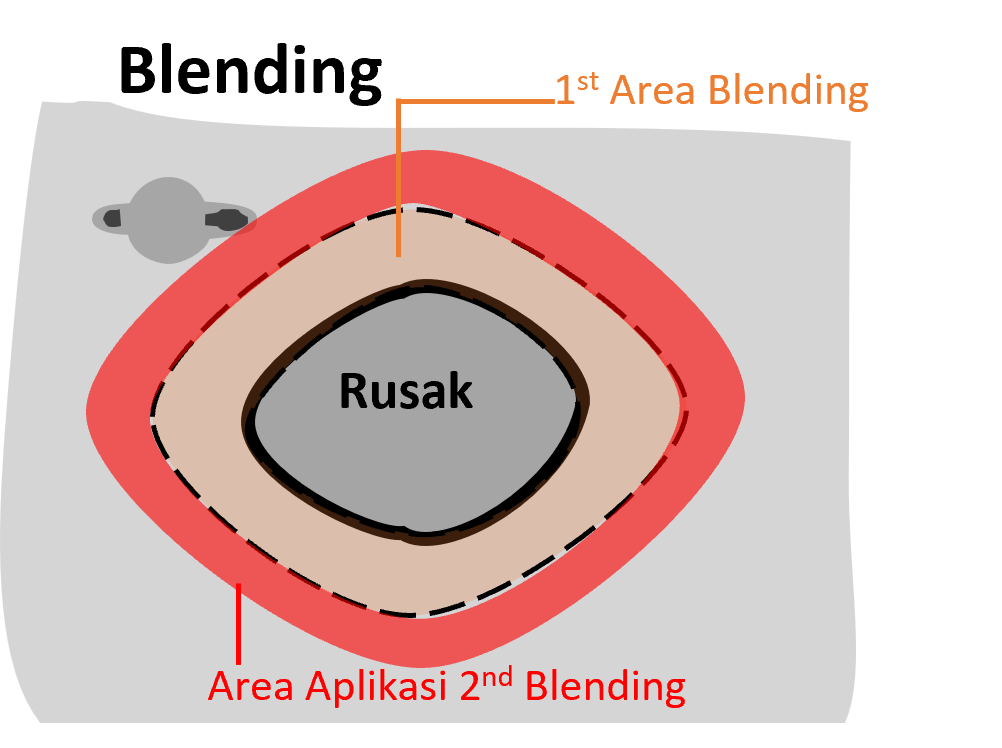

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area color base lapis 1
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu sp

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase Metallic
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan lebih luas dari area color base lapis 1

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

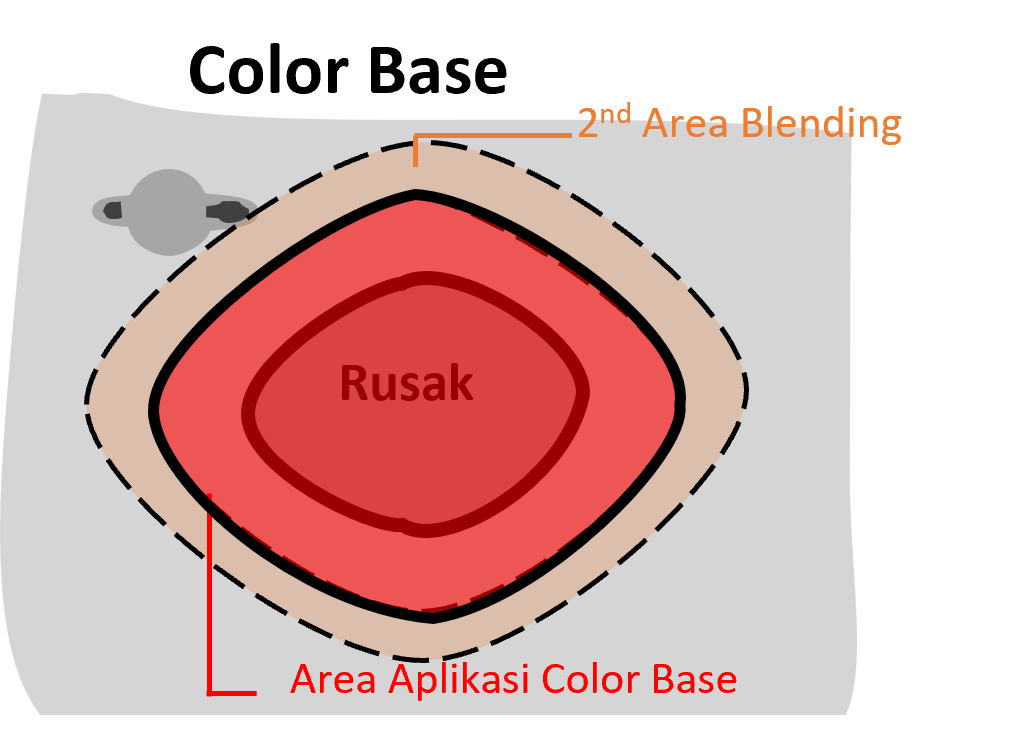

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area color base lapis 2
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu sp

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase Metallic
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Mottling Corection
♦Diaplikasikan lebih luas dari area color base lapis 2
