Proses ColorBase

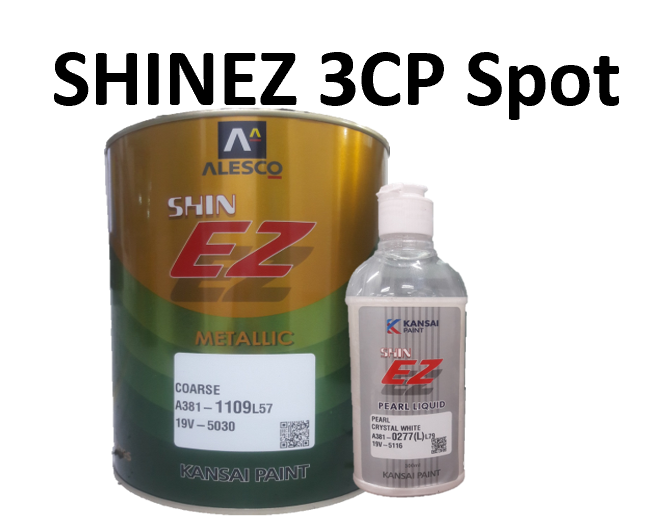

Produk SHIN EZ
Cara Spot Repair
Tipe Warna 3 Coat Pearl

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

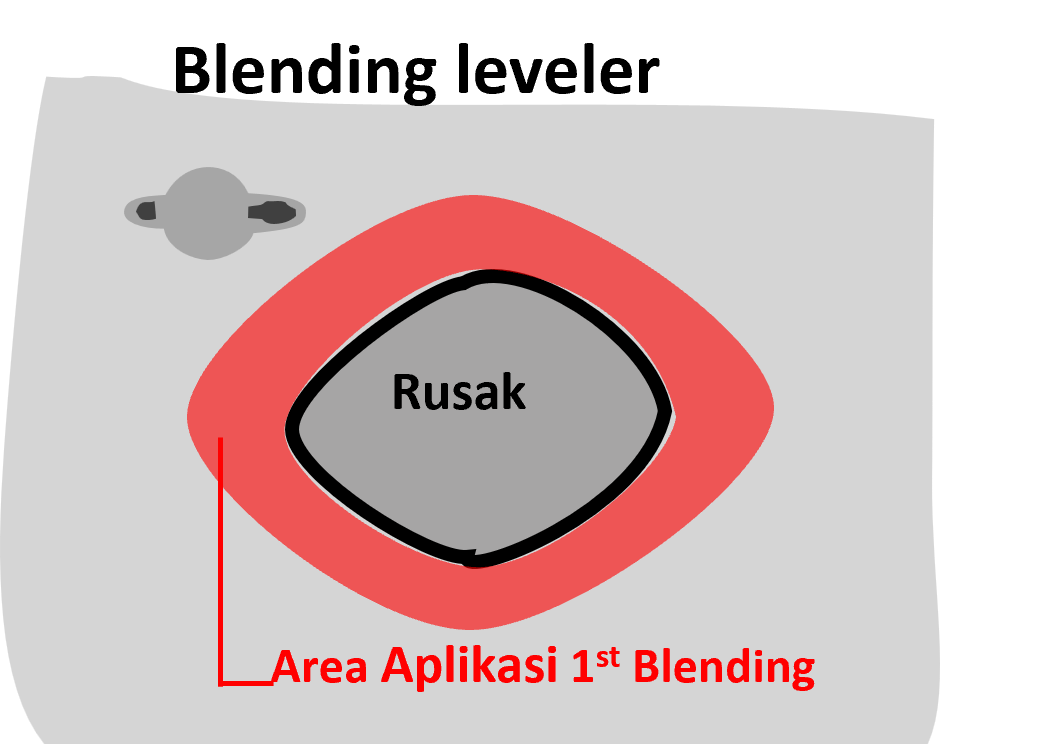

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area surfacer
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu spray lapis

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase
SHIN EZ 2K Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

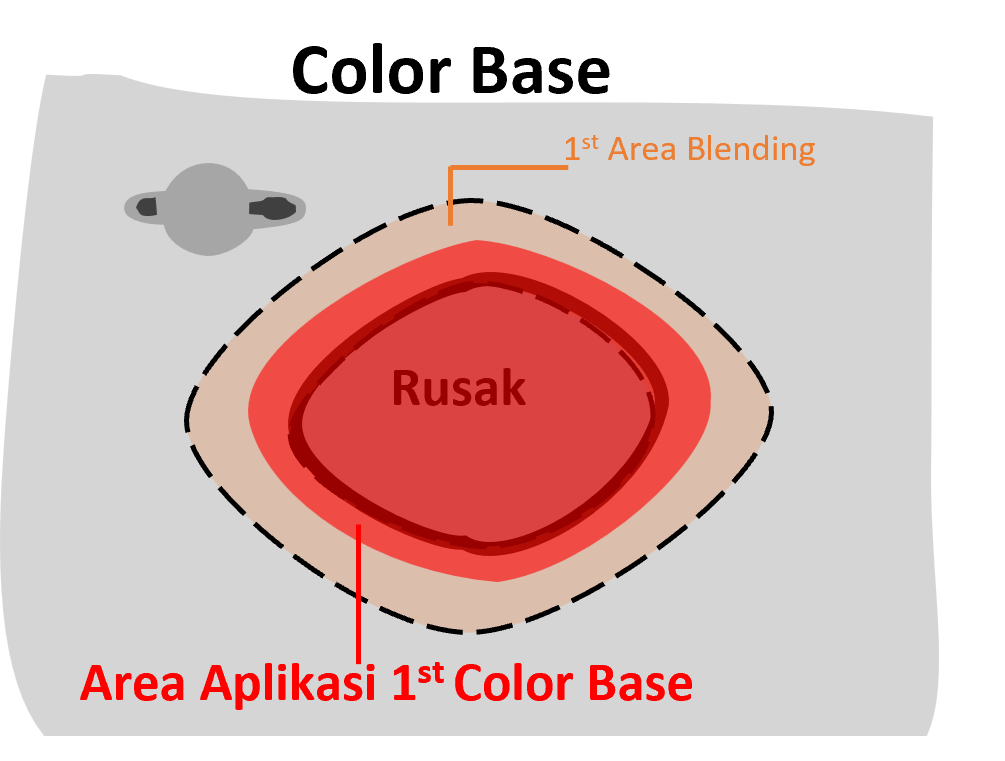

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan menutupi area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

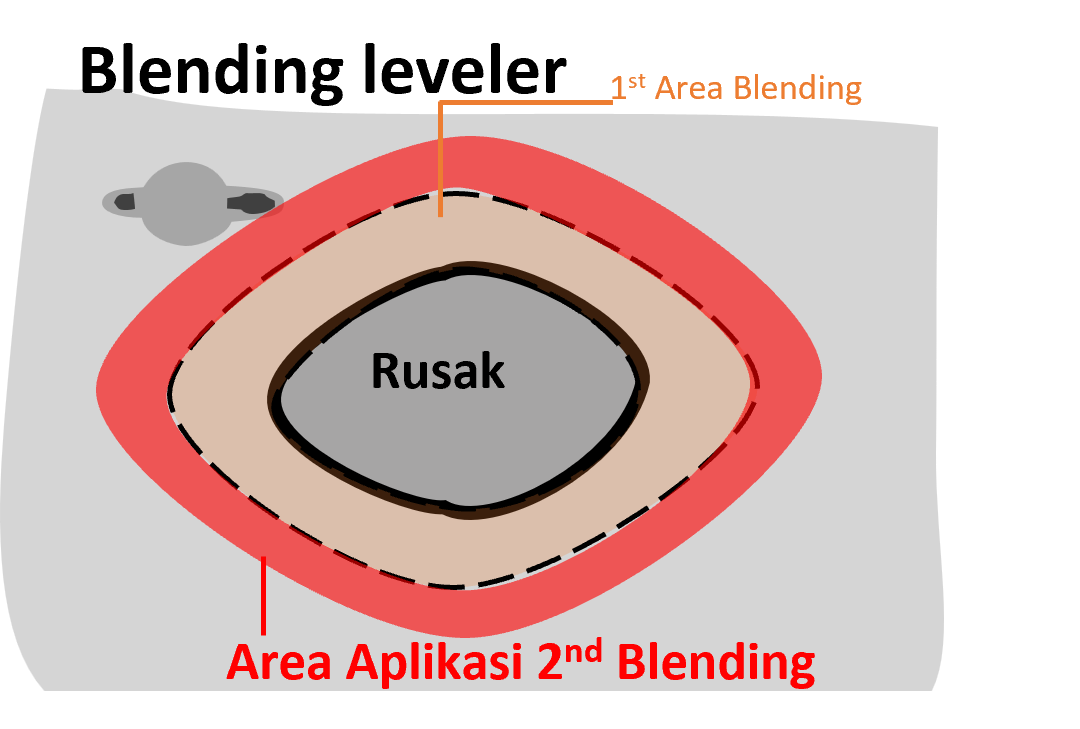

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area color base lapis 1
♦Aplikasikan 1 - 2 lapis
♦Diapilkasikan untuk mena

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase
SHIN EZ 2K Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

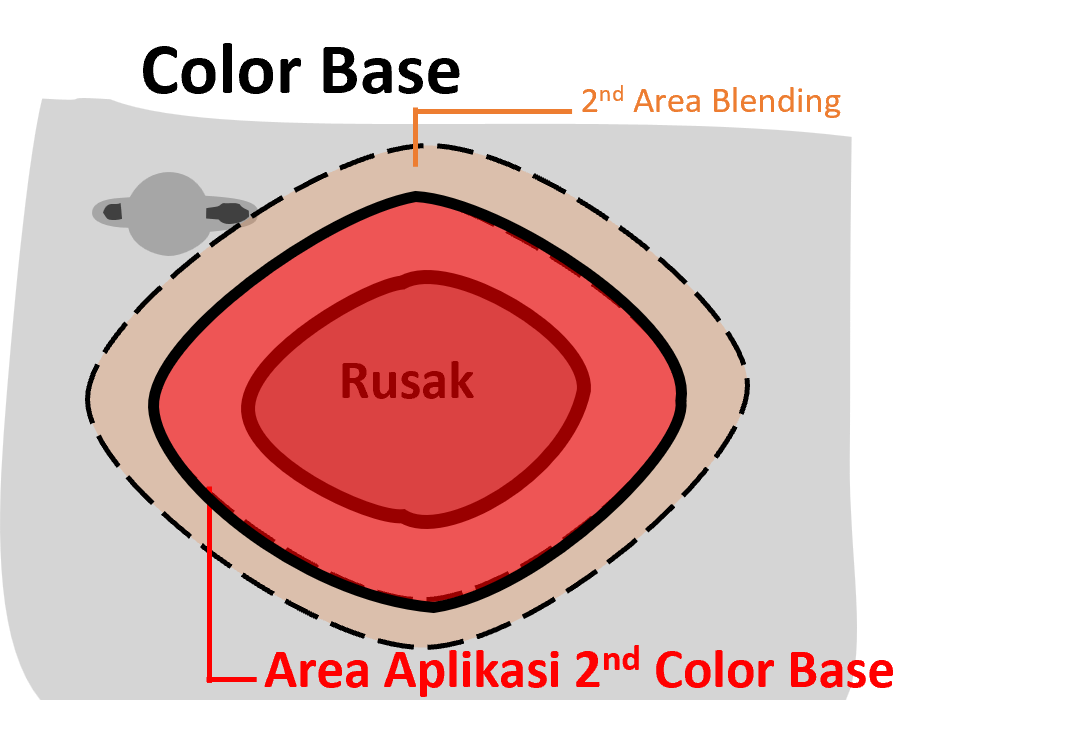

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan lebih luas dari area color base lapis 1

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

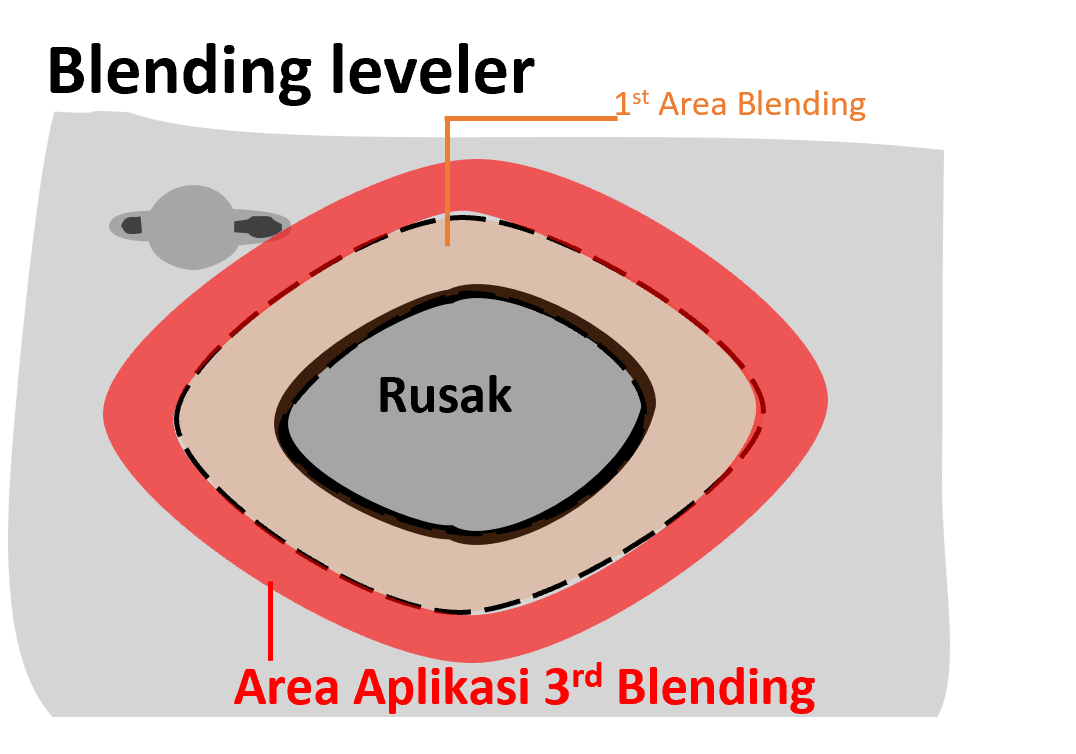

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area Color Base Lapis 2
♦Diaplikasikan 1 - 2 lapis
♦Untuk menangkap debu s

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase
SHIN EZ Pearlbase
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

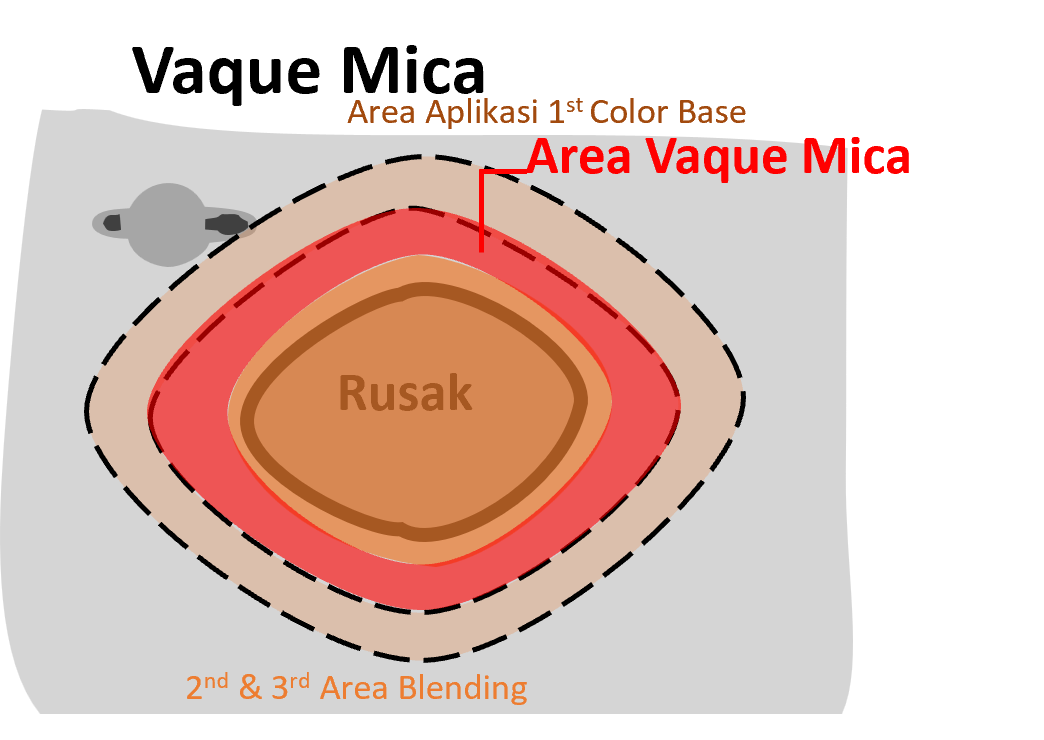

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦ Membuat gradasi Color Base
♦ Diaplikasikan menyambung color base lama dan color base baru

7 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

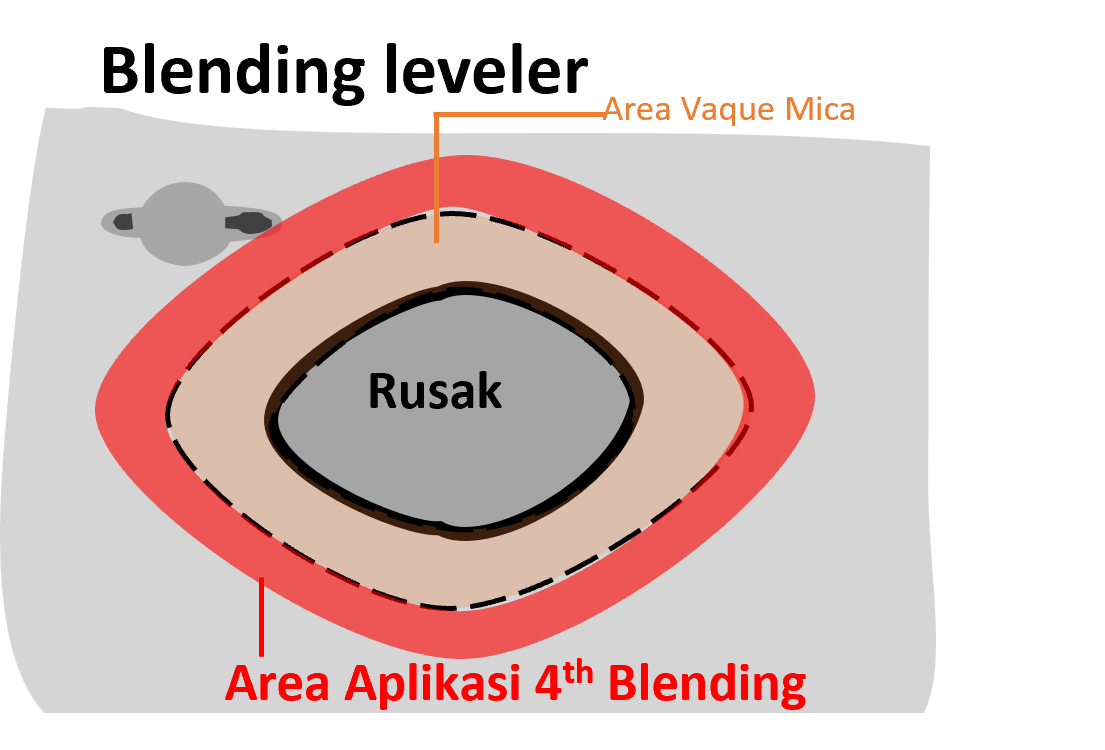

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area Vague Pearl Base
♦Aplikasikan 1 - 2 lapis Untuk menangkap debu spray Pea

8 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ Pearl Base
Hi-temp thinner(Low dilution)
SHIN EZ Pearl Base 100
Hi-temp thinner(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diatas area Color Base
♦Diaplikasikan sampai batas luar area Vaque Base

9 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

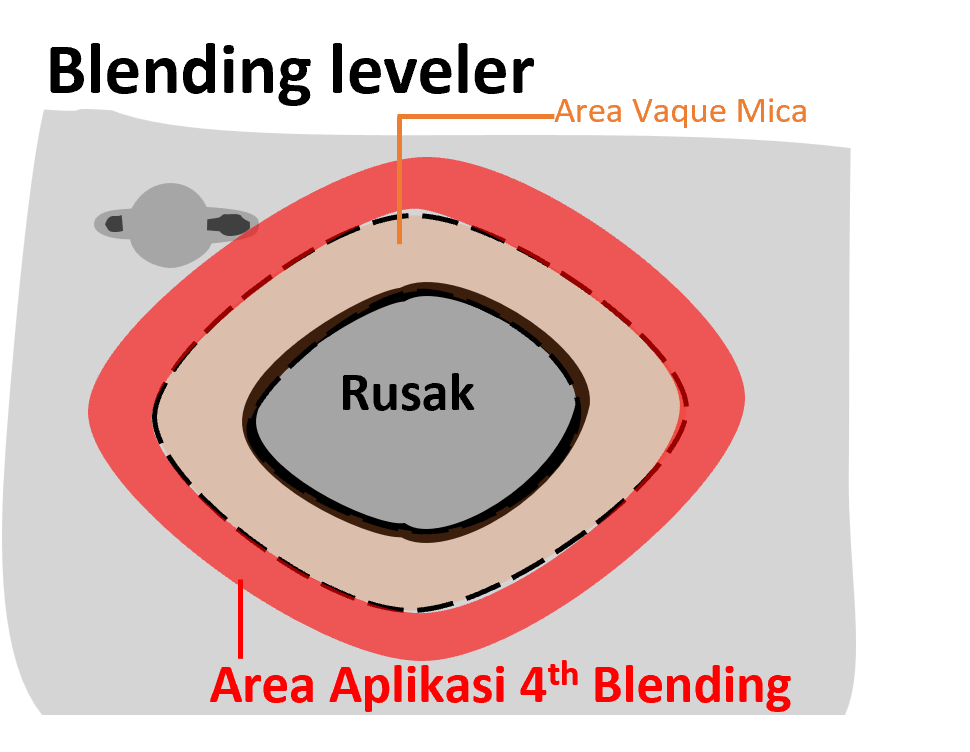

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area Pearl Base 1
♦Untuk Menangkap debu spray Pearl Base 2
♦Diaplikasikan

10 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ Pearl Base
Hi-temp thinner(Low dilution)
SHIN EZ Pearl Base 100
Hi-temp thinner(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

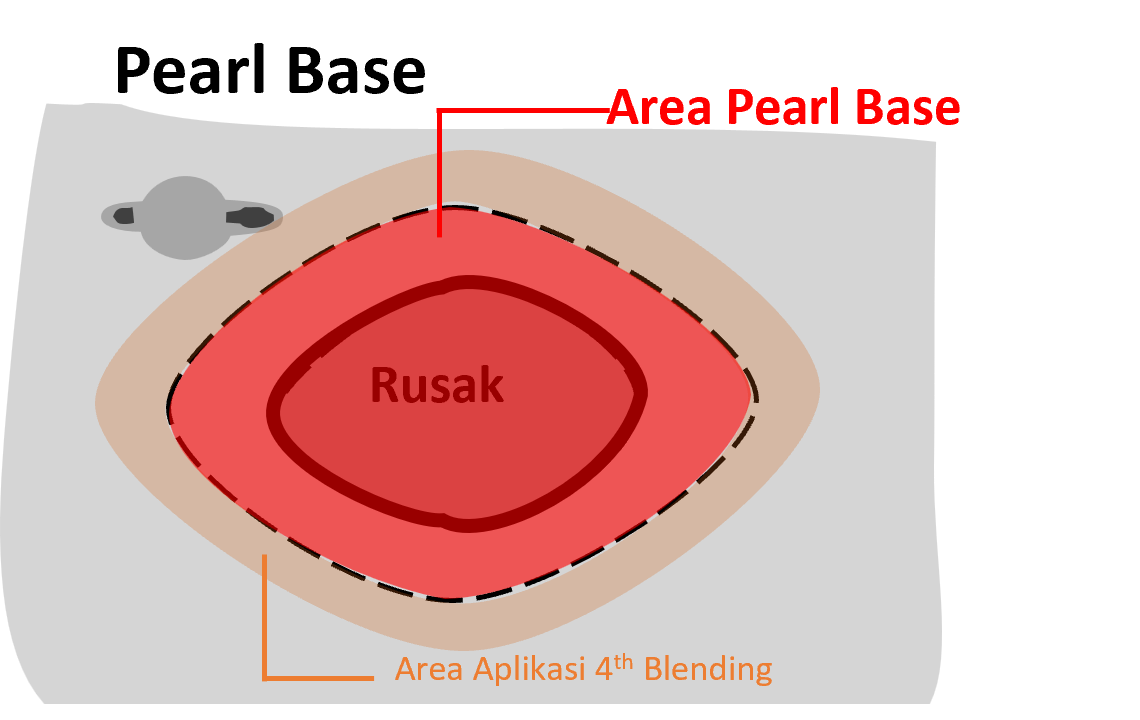

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Color Base
♦Diaplikasikan lebih luas dari area Pearl Base 1
