Proses ColorBase

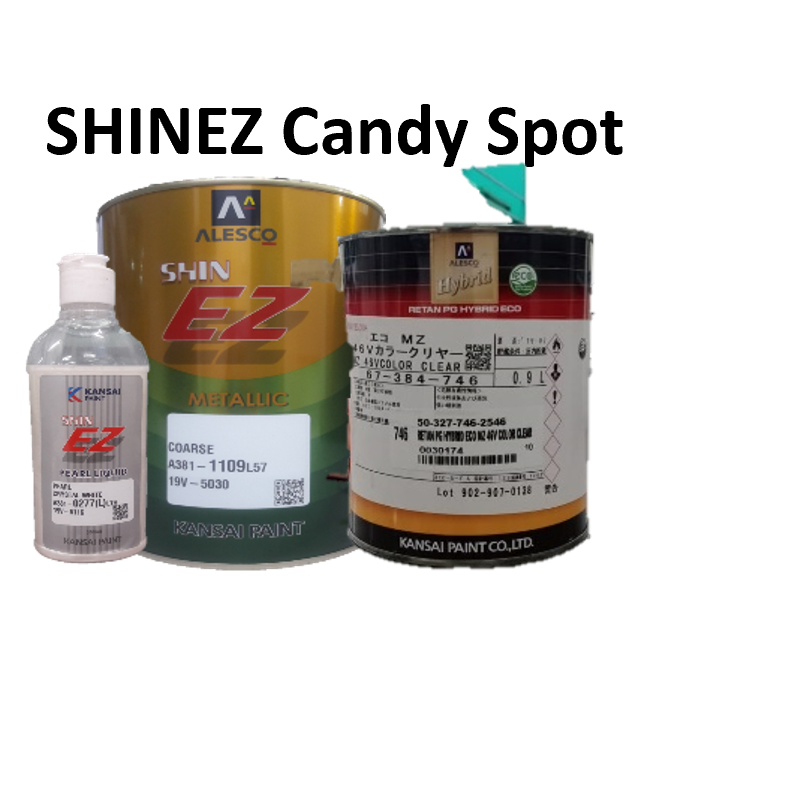

Produk SHIN EZ
Cara Spot Repair
Tipe Warna Candy Color

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

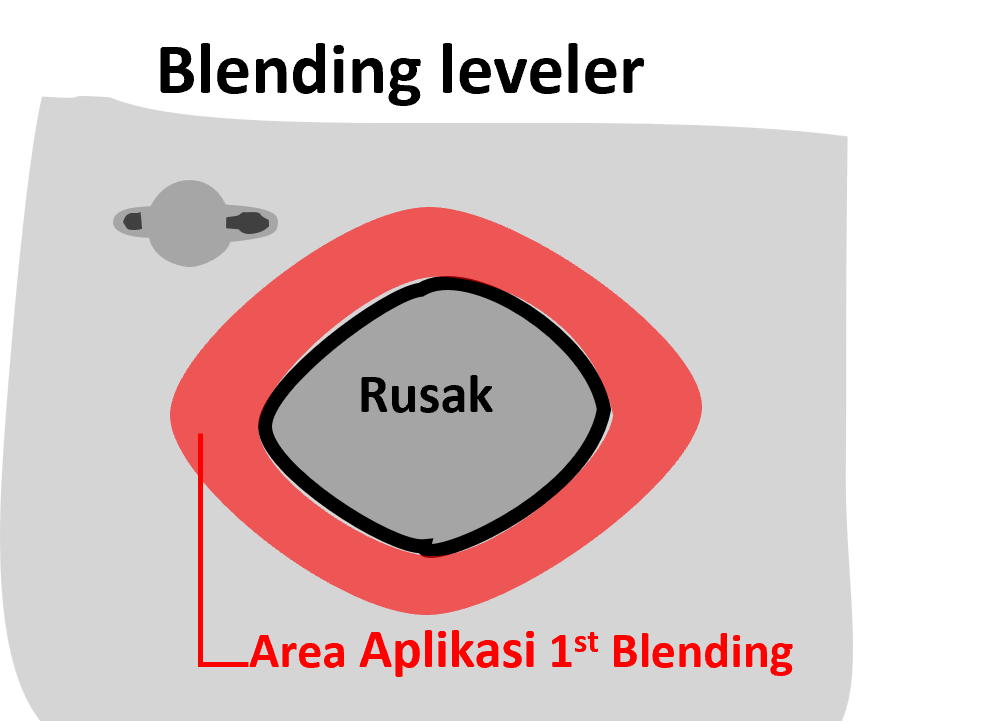

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area surfacer
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu spray lapis

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase Silver
SHIN EZ 2K Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

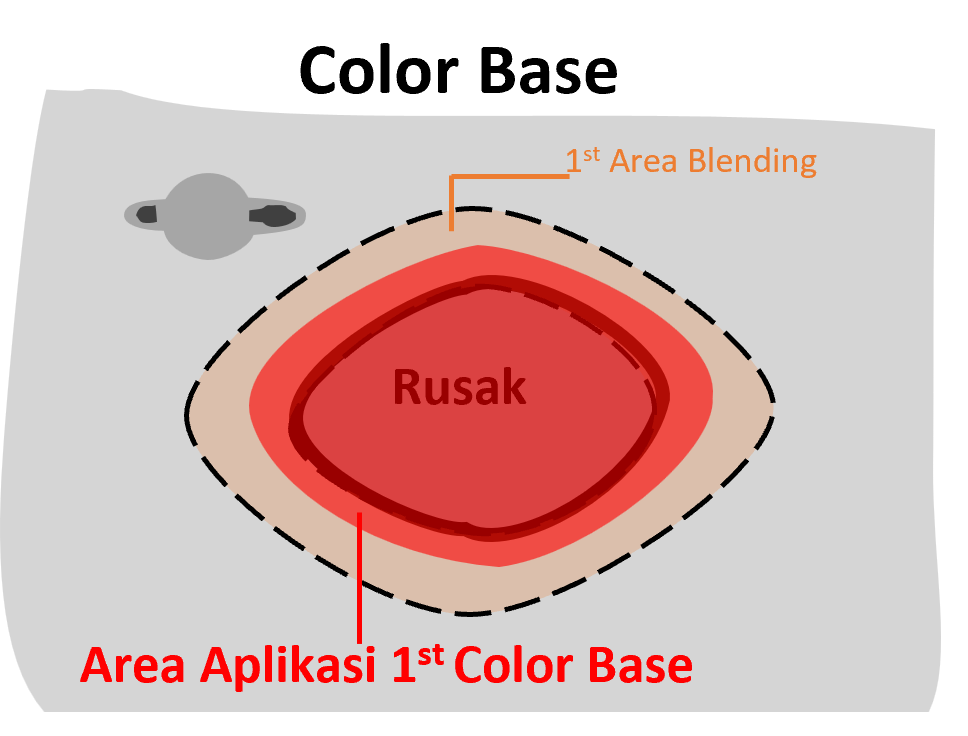

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Diaplikasikan menutupi area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

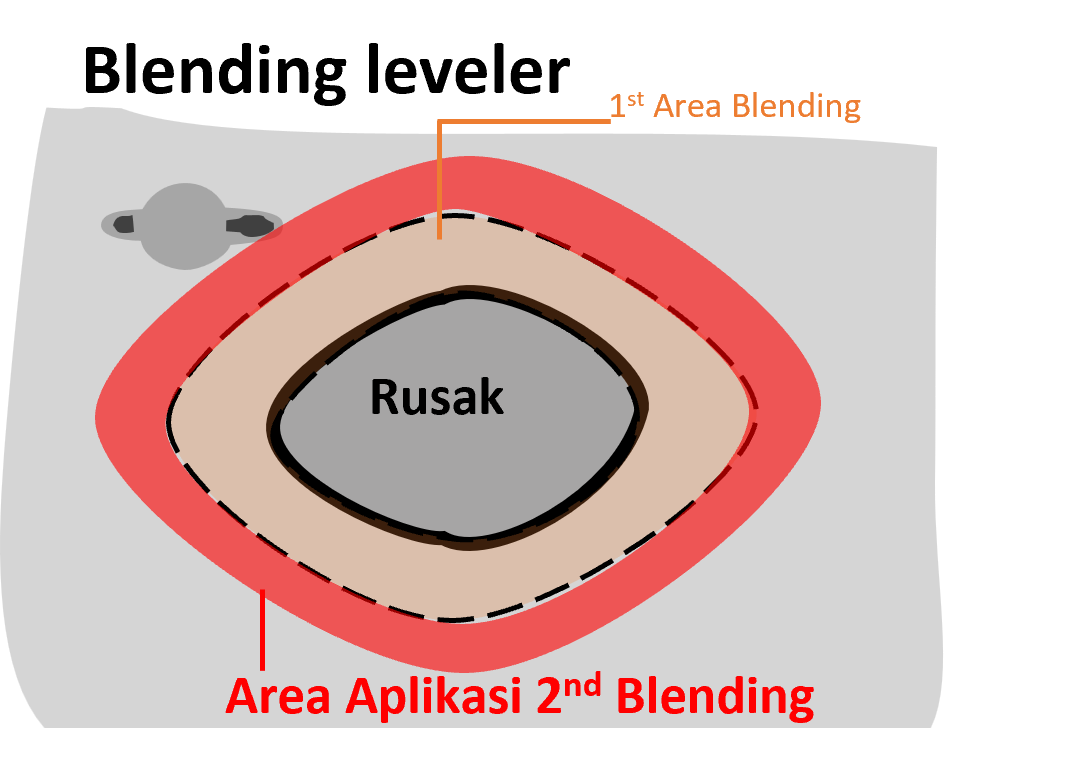

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area lapis 1
♦Diaplikasikan 1 - 2 lapis
Untuk menangkap debu spray lapis 2

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ colorbase
SHIN EZ 2K Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

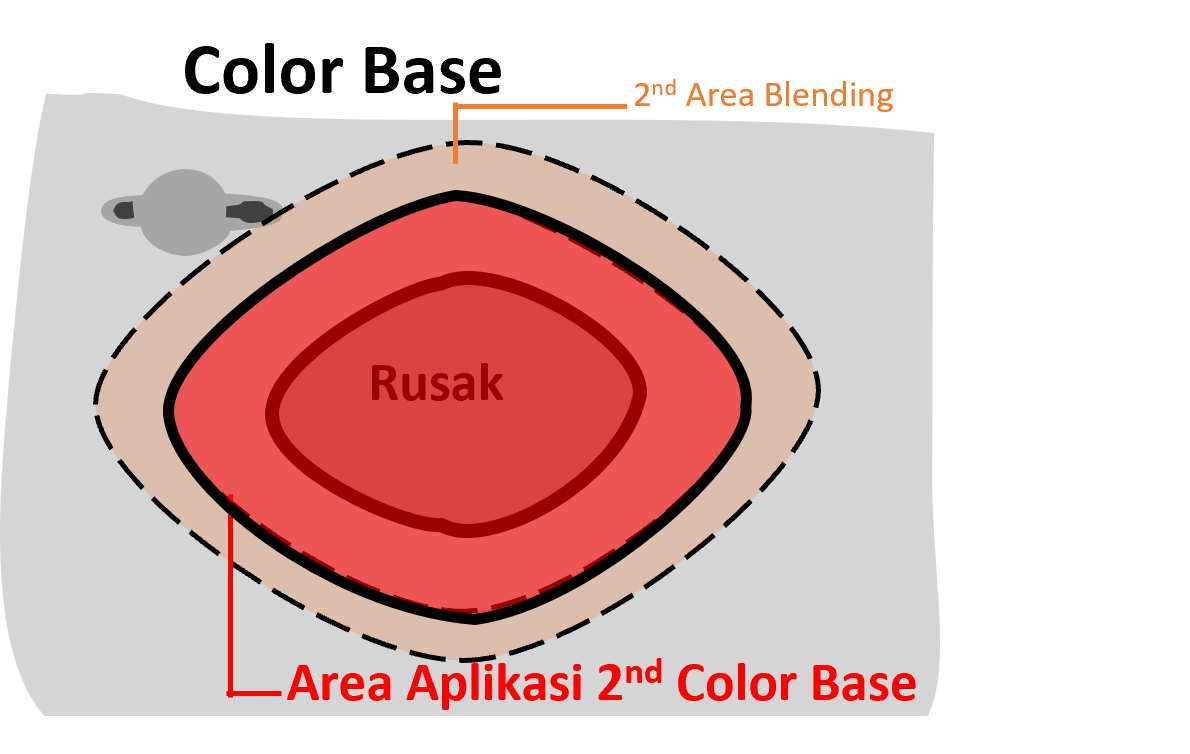

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Diaplikasikan menutupi area surfacer
♦Diaplikasikan lebih luas dari area Color Base Silver Lapis

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

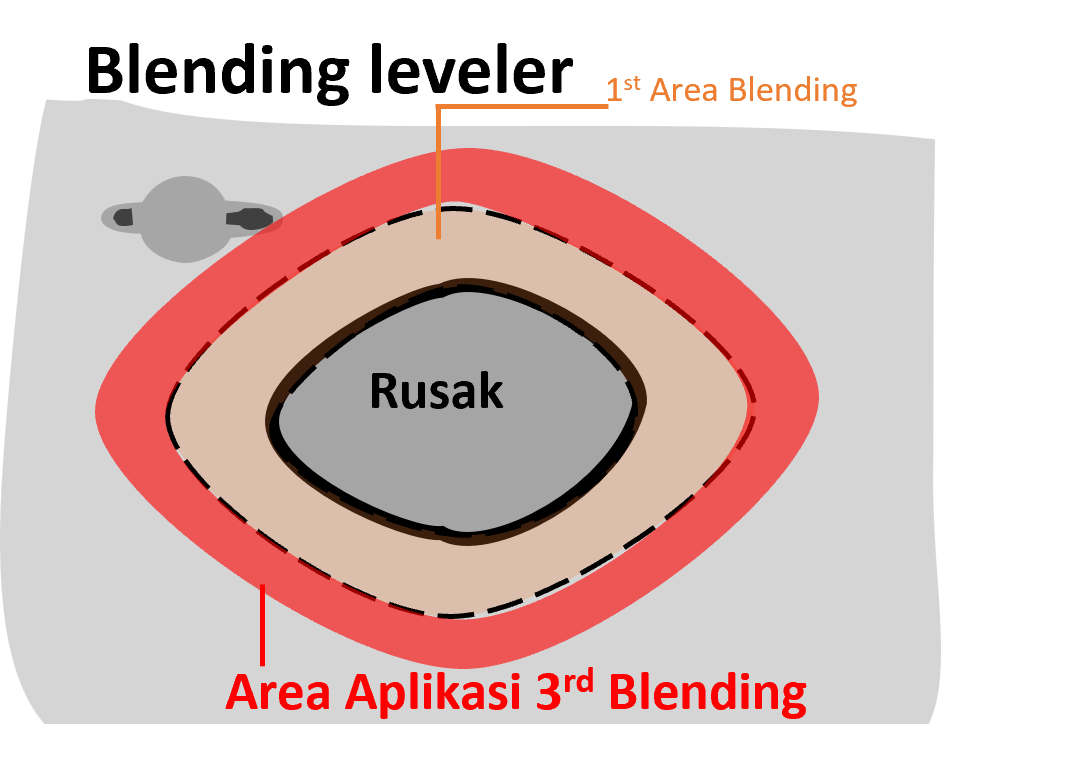

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area Color Base Silver 2
♦Diaplikasikan 1 - 2 lapis
♦Untuk menangkap debu

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ Silver Base (Silver Color)
SHIN EZ 2K Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

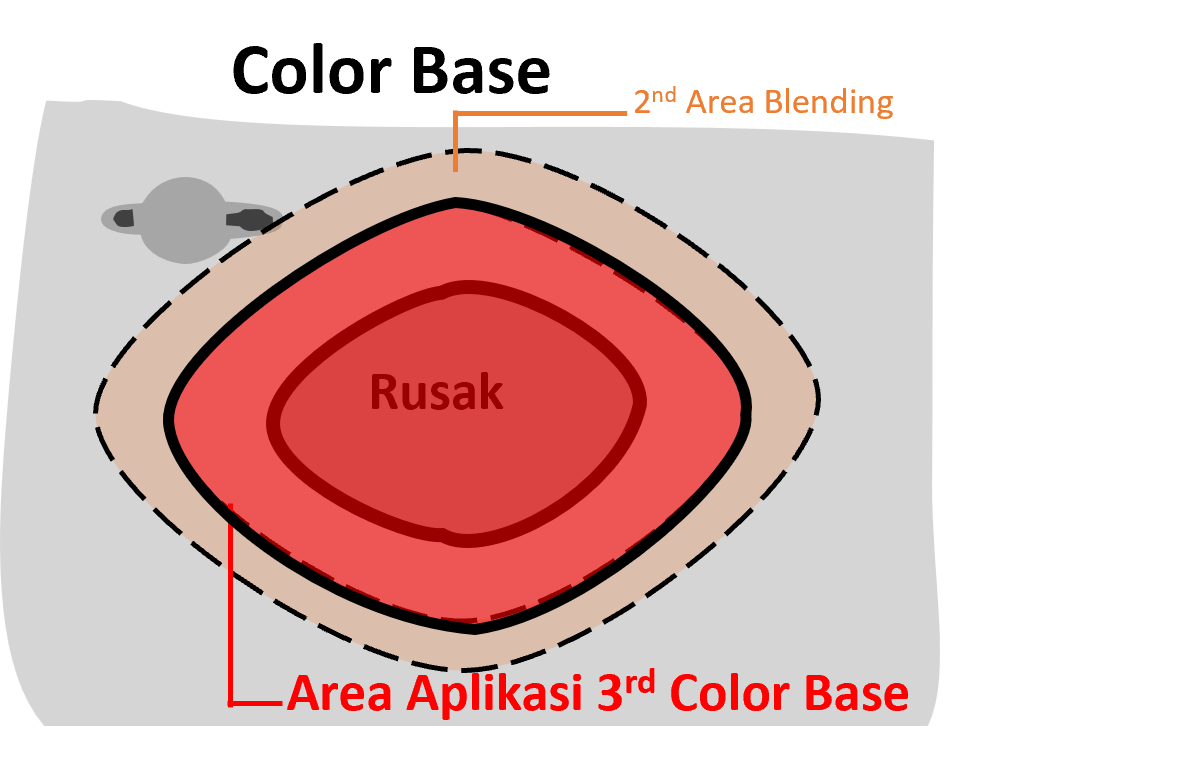

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦ Mottling Corection
♦Diaplikasikan menutupi area Color Base Silver lapis 2

7 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

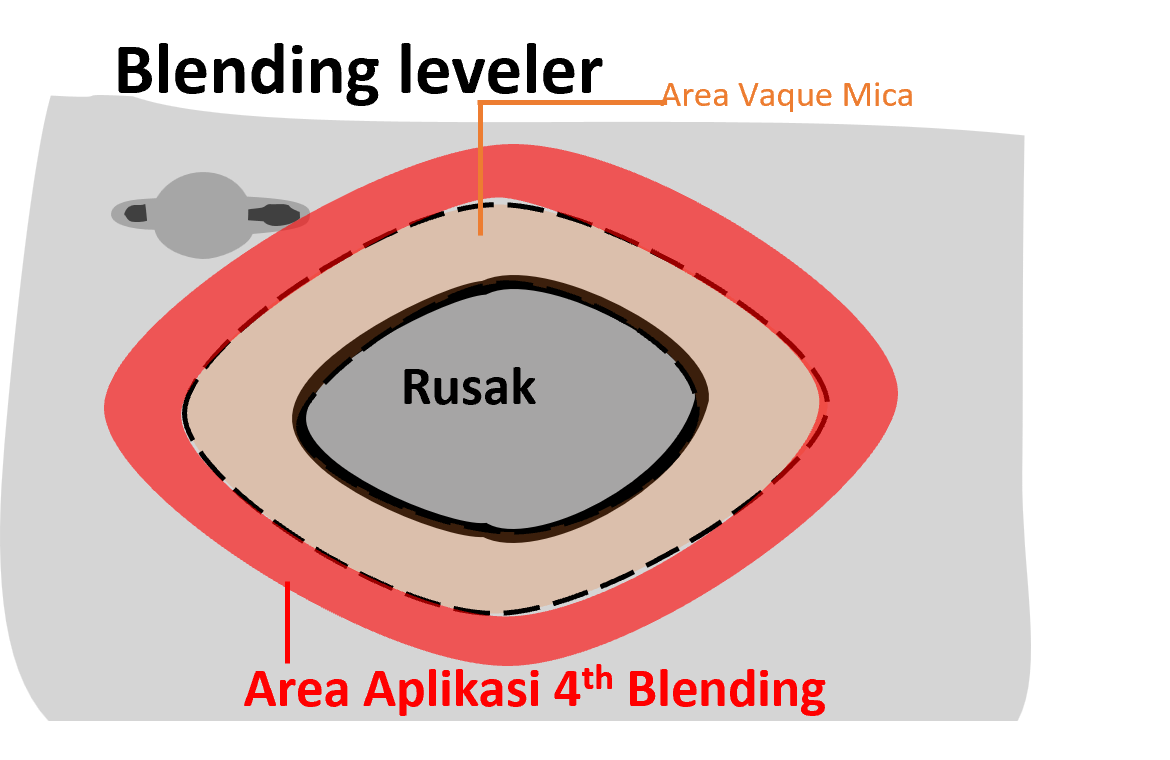

♦Diaplikasikan diluar area Color Base Silver Lapis 3
♦Aplikasikan 1 - 2 lapis
Untuk menangkap

8 th Process

Necessary Qty g
a. Materials
Mixing ratio
SHIN EZ Color Base
Retan PG Hybrid 46V Candy Base
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

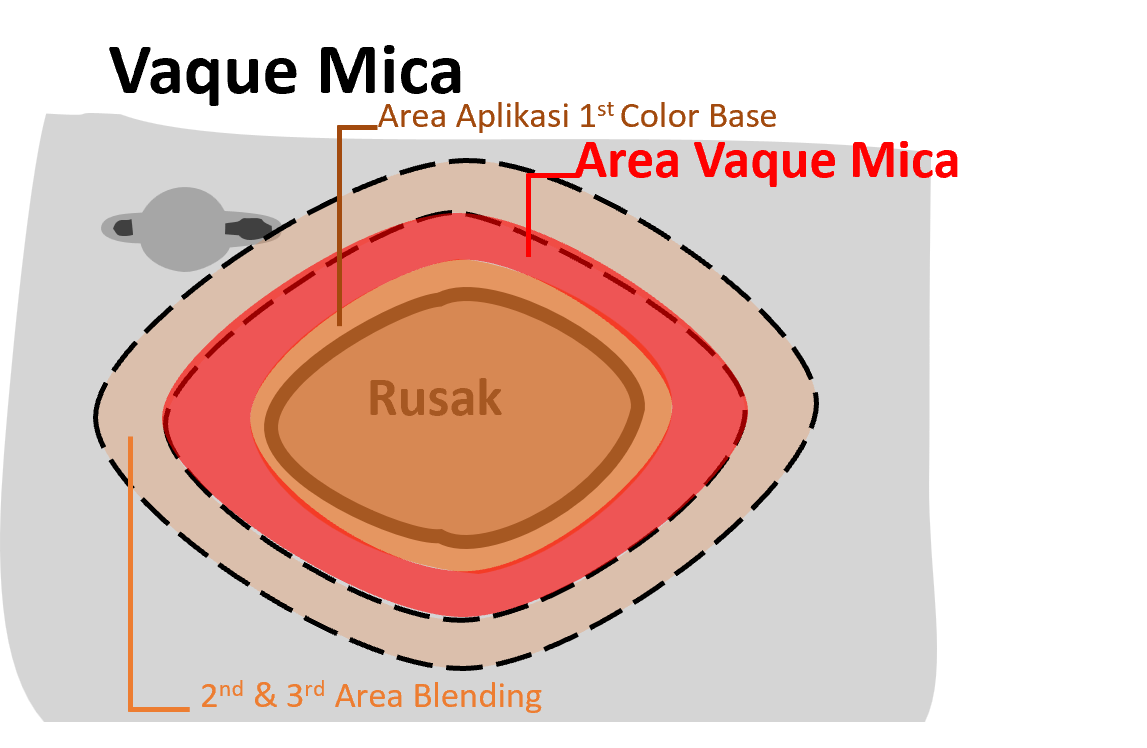

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Membuat gradasi Vaque Candy
♦Diaplikasikan menyambung Color Base lama dan Color Base baru

9 th Process

Necessary Qty g
a. Materials
Mixing ratio
0022 Thinner Blend In
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan diluar area Silver Base 2

10 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan PG Hybrid 46V Candy Base
Hi-temp thinner(Low dilution)
Retan PG Hybrid 46V Candy Base 100
Hi-temp thinner(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points

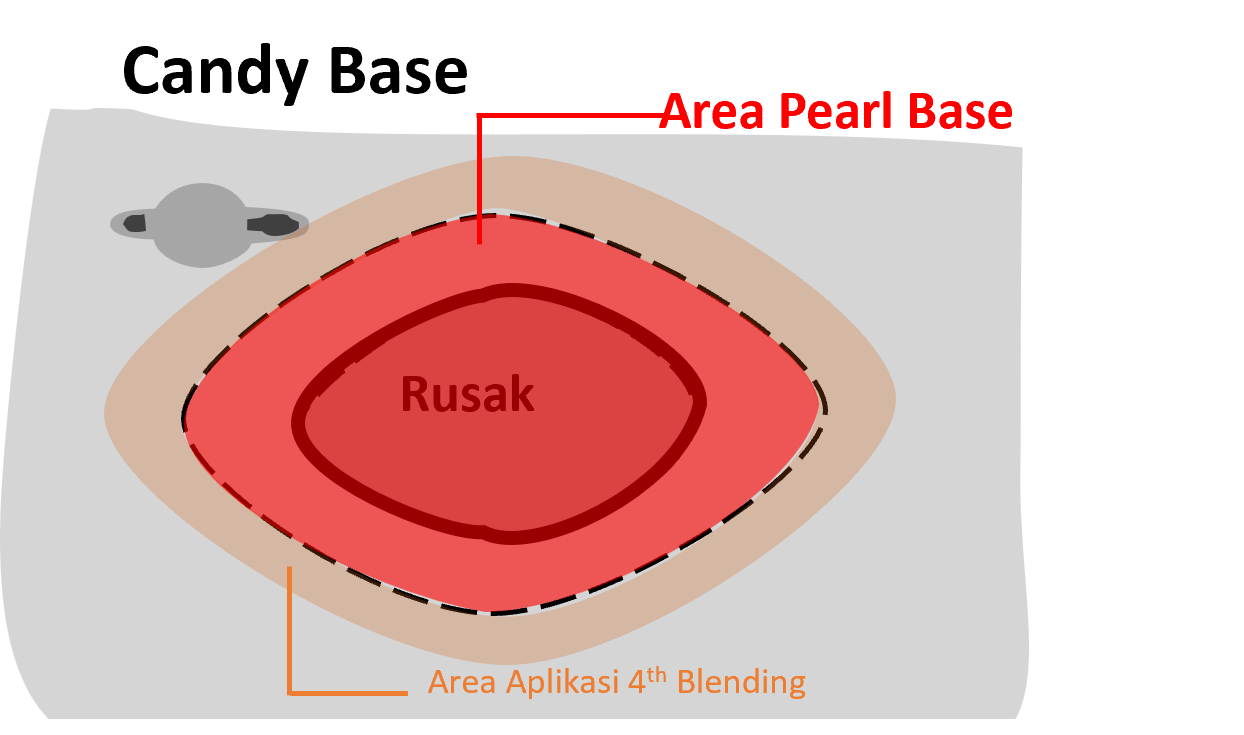

♦Diaplikasikan diatas area Color Base Silver
♦Aplikasikan sampai batas luar area Vaque Candy

11 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

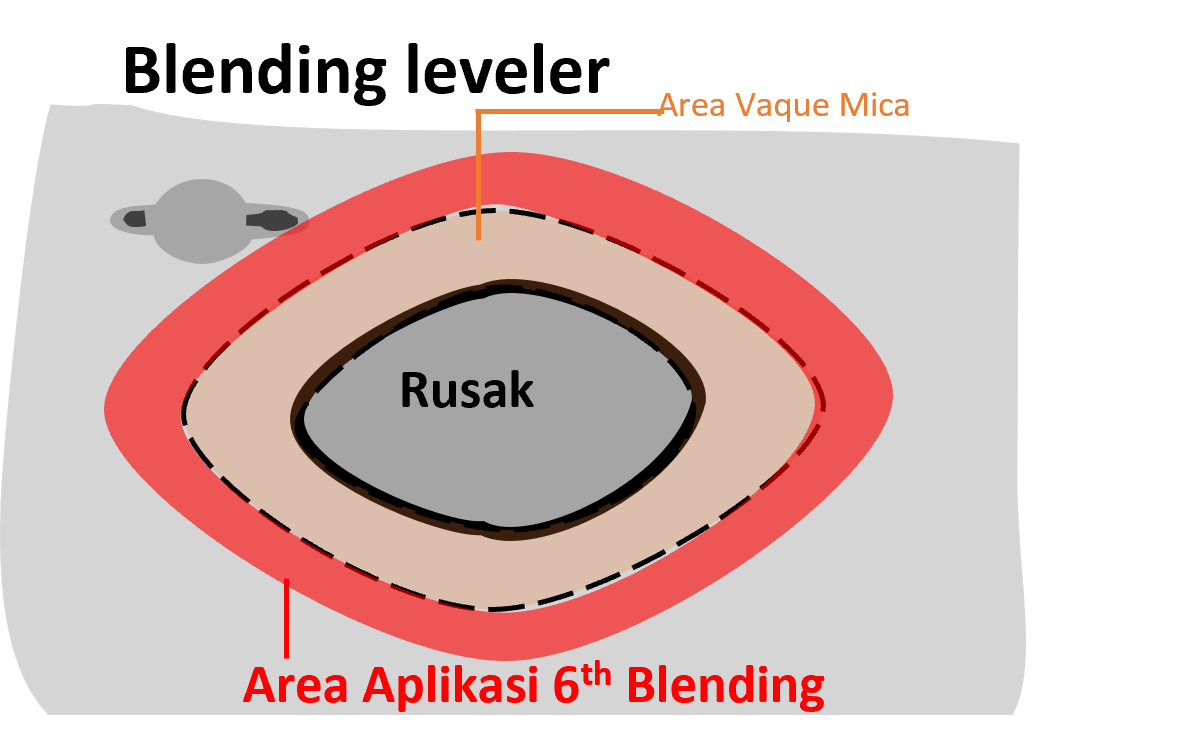

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasikan diluar area color Candy Lapis 1
♦Diaplikasikan 1 - 2 lapis
♦Untuk menangkap debu

12 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan PG Hybrid 46V Candy Base
Hi-temp thinner(Low dilution)
Retan PG Hybrid 46V Candy Base 100
Hi-temp thinner(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points

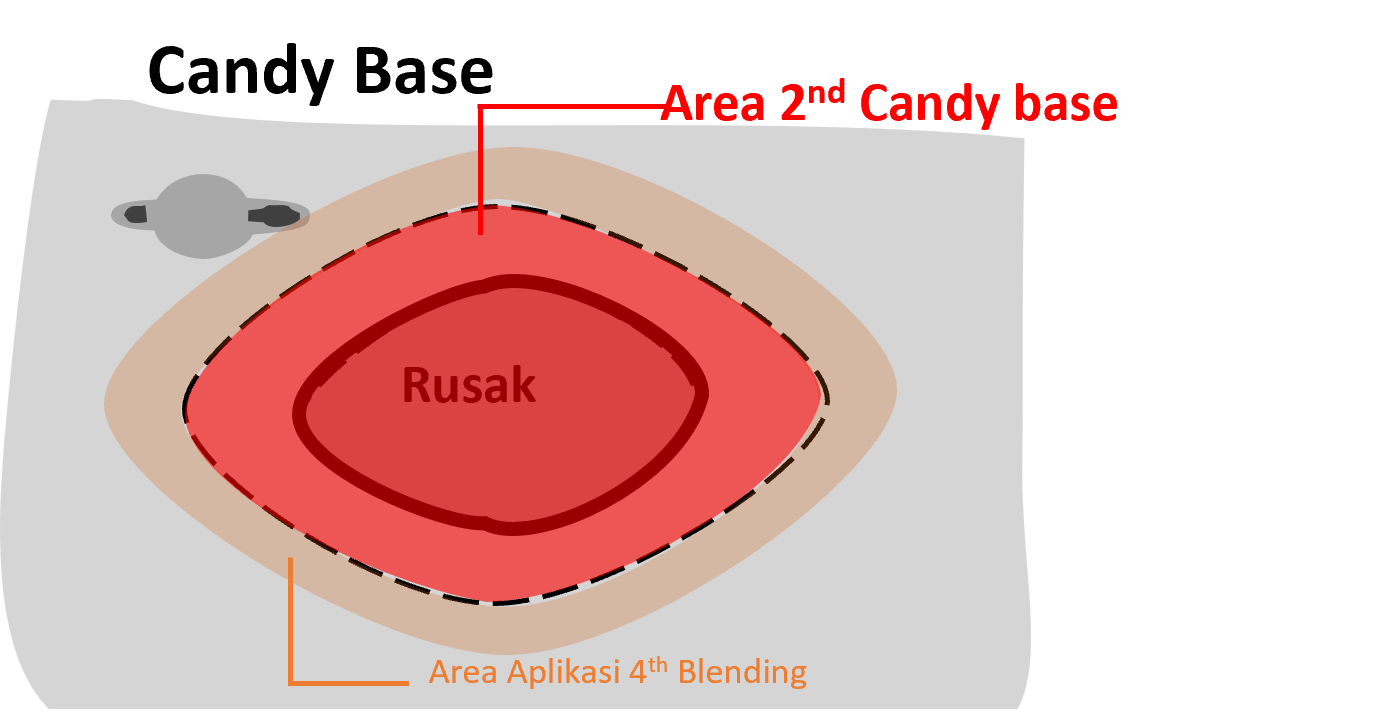

♦Diaplikasi diatas area Silver Color Base
♦Aplikasikan lebih luas dari area Candy Color Base Lapi
