Proses ColorBase

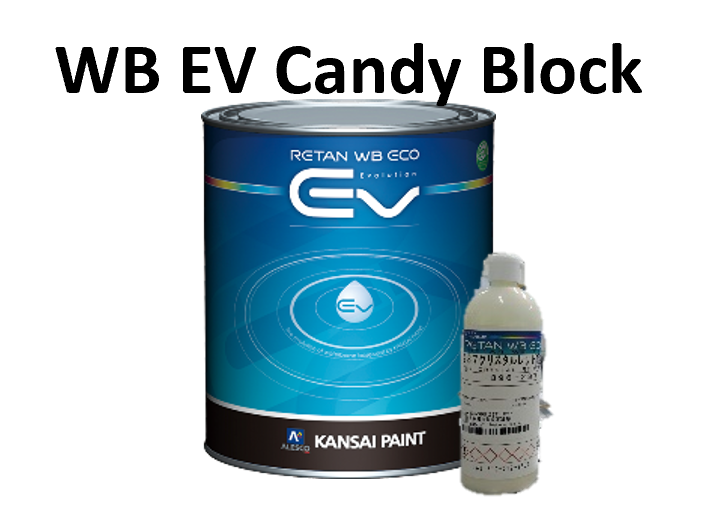

Produk Retan WB Eco EV
Cara Block
Tipe Warna Candy

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Reducer(High dilution) 110
Retan WB Eco EV Hardener 10
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

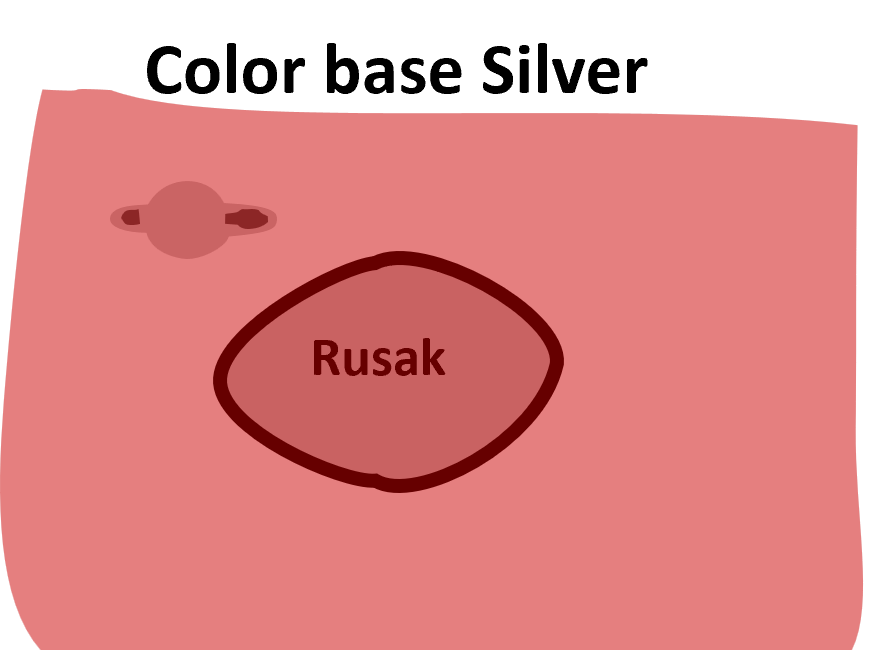

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 20cm 1/2 Normal 10 min
2nd layer 80% 20cm 3/4 Normal 10 min
3rd layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Spray sampai menutup area surfacer

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Candy base
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Pearl base 100
Retan WB Eco EV Reducer(High dilution) 180
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

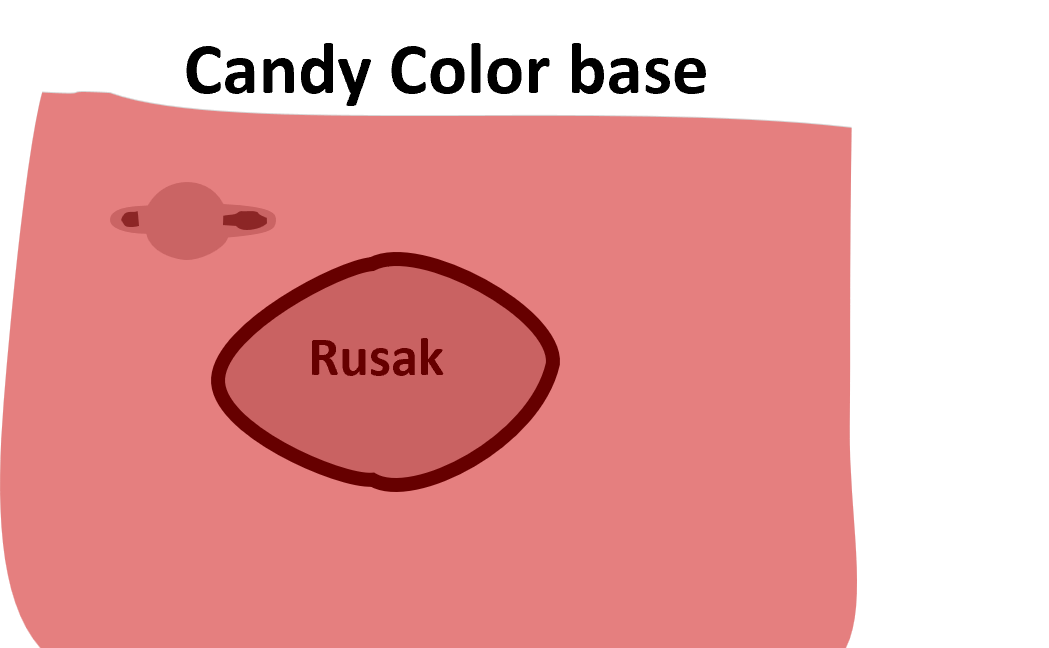

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 10 min
2nd layer 80% 20cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
