Proses ColorBase

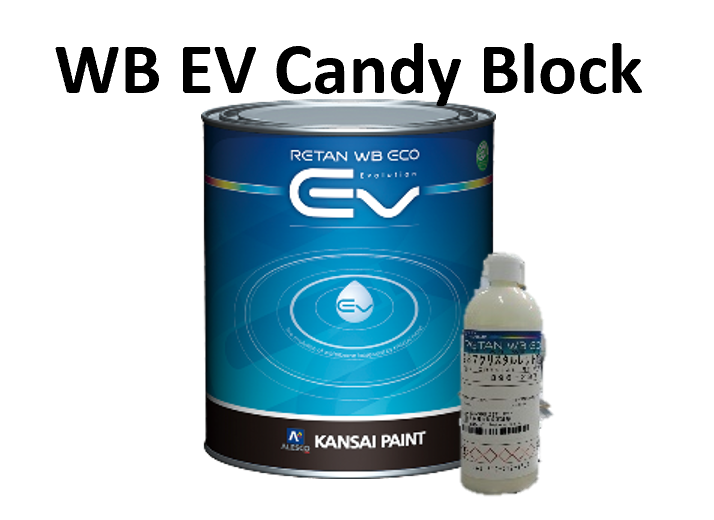

Produk Retan WB Eco EV
Cara Spot Repair
Tipe Warna Metallic

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(High dilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

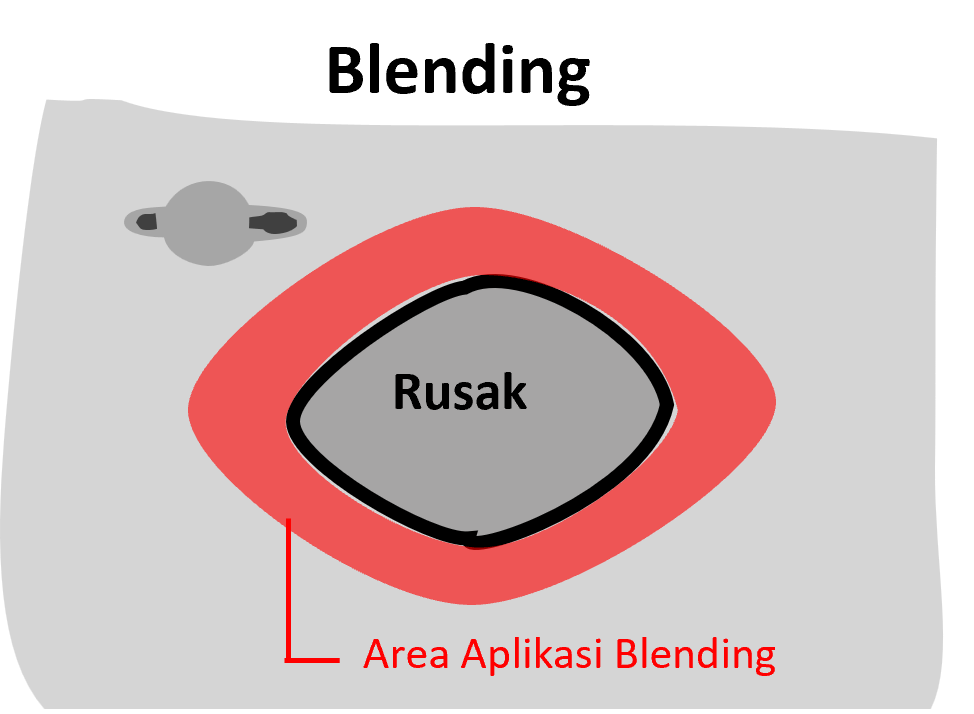

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Pearl base 100
Retan WB Eco EV Reducer(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

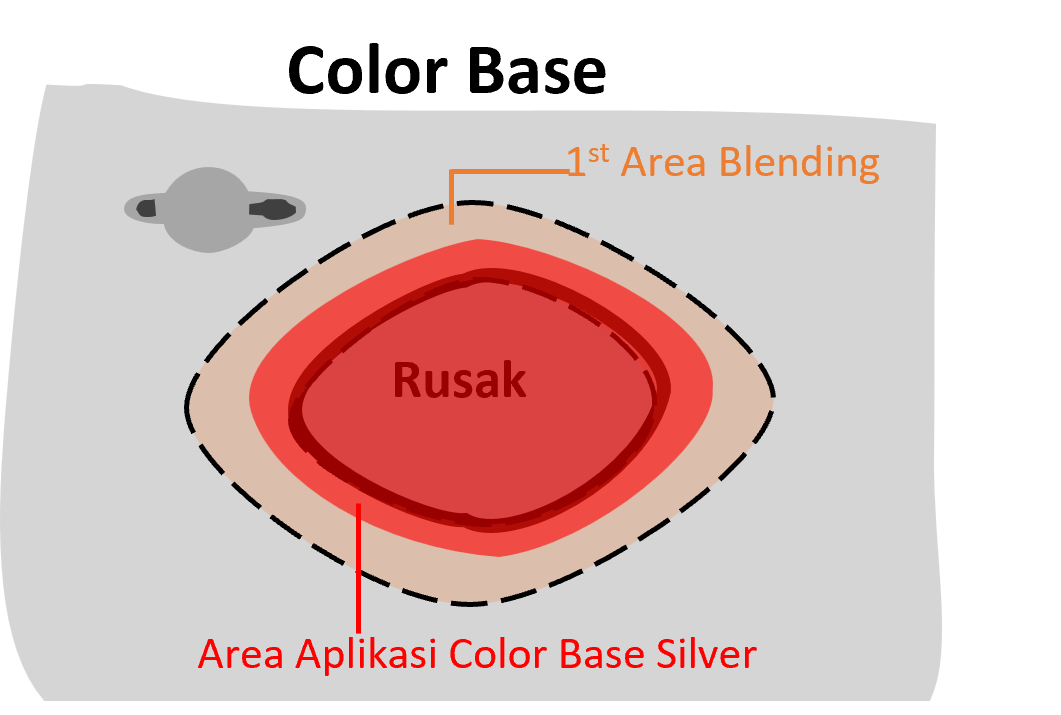

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 20cm 1/2 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Spray sampai menutup area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(Highdilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

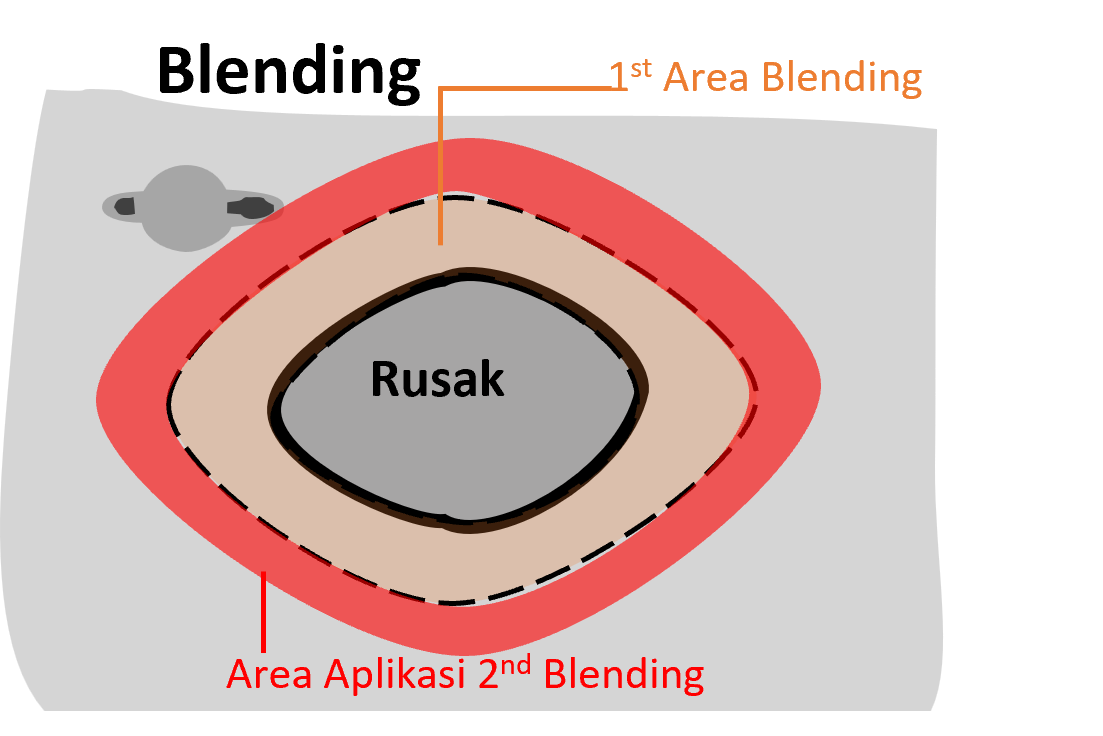

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Colorbase 100
Retan WB Eco EV Reducer(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

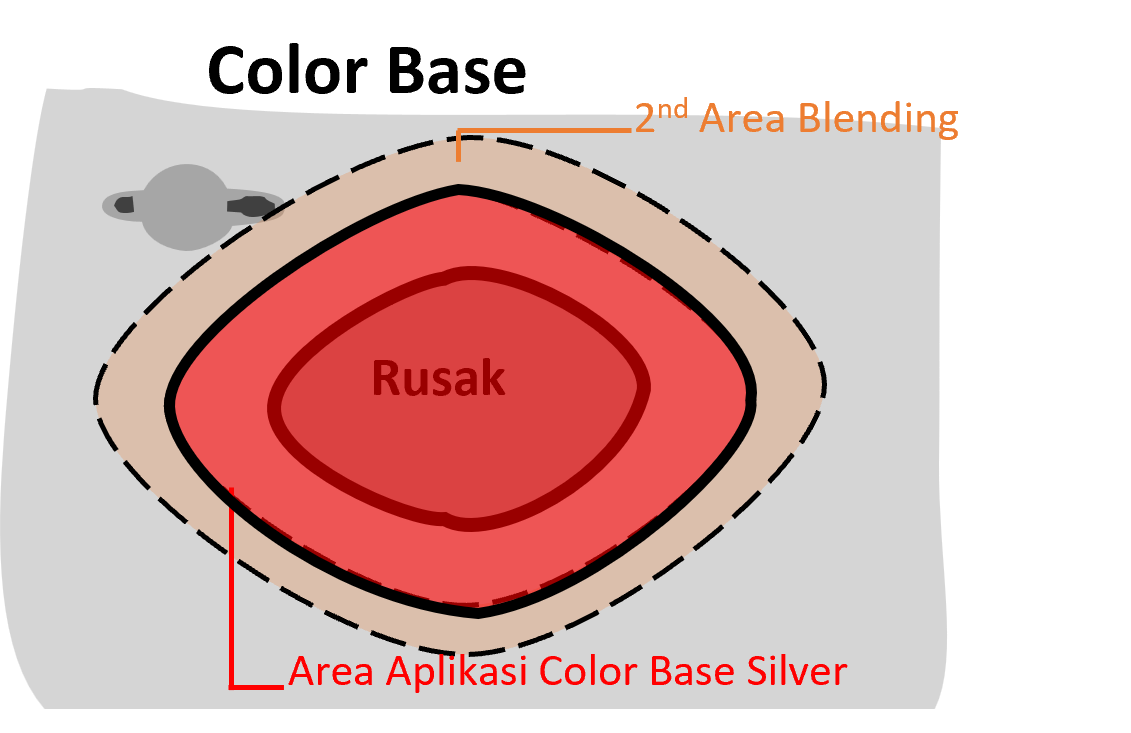

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(High dilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

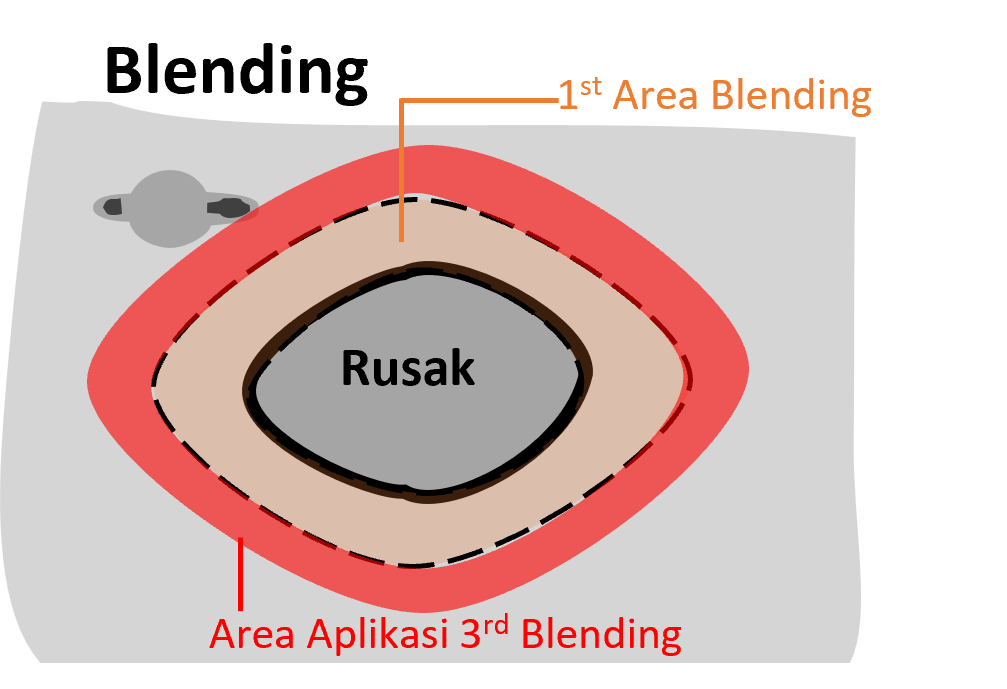

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase Metallic
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Colorbase Metallic 100
Retan WB Eco EV Reducer(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

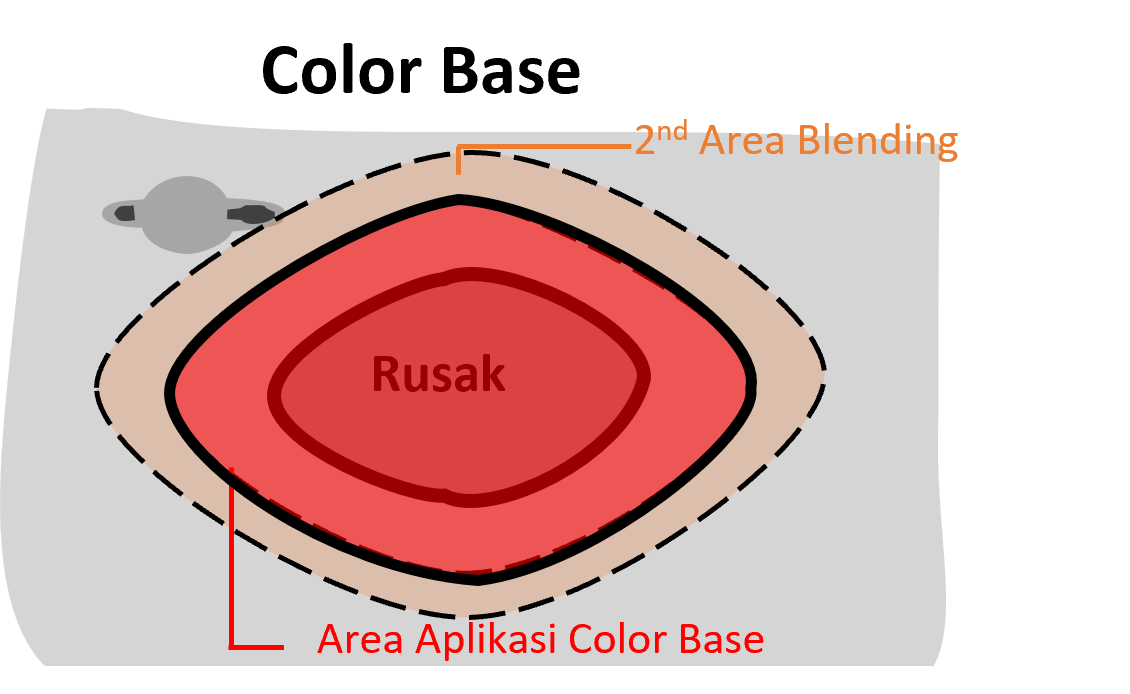

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
