Proses ColorBase

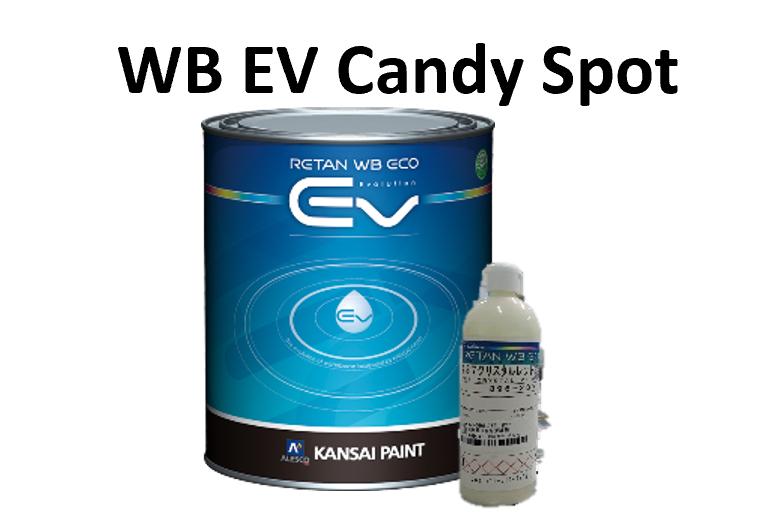

Produk Retan WB Eco EV
Cara Spot Repair
Tipe Warna Candy

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(High dilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

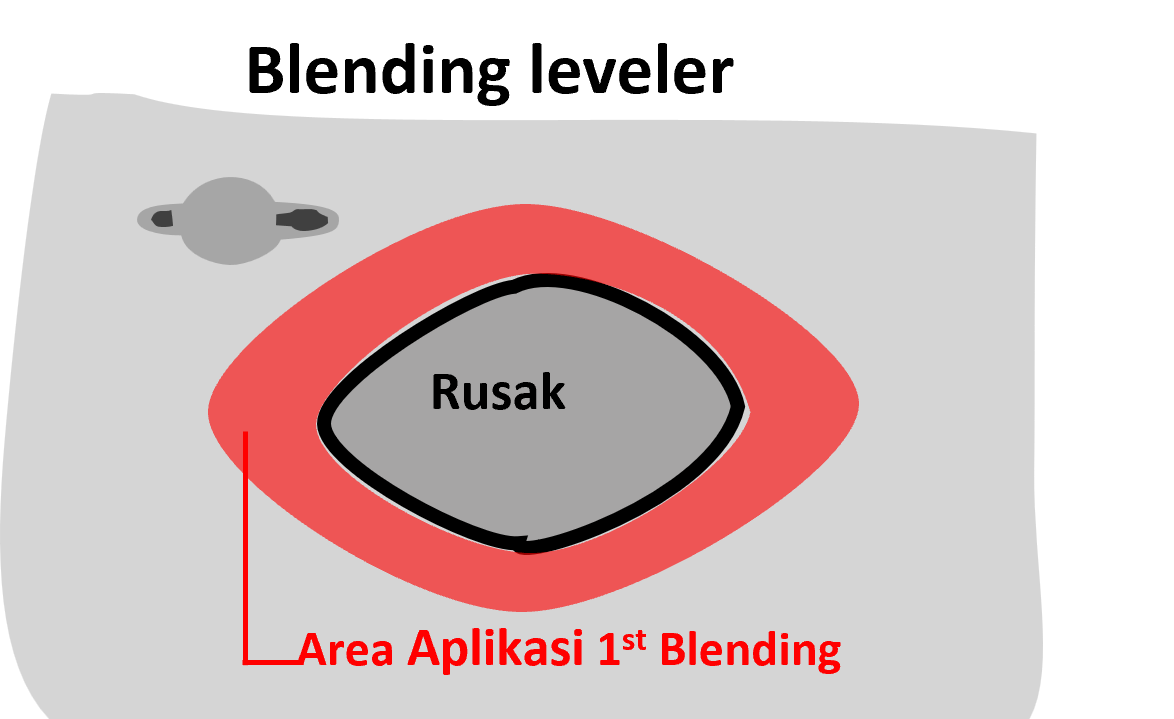

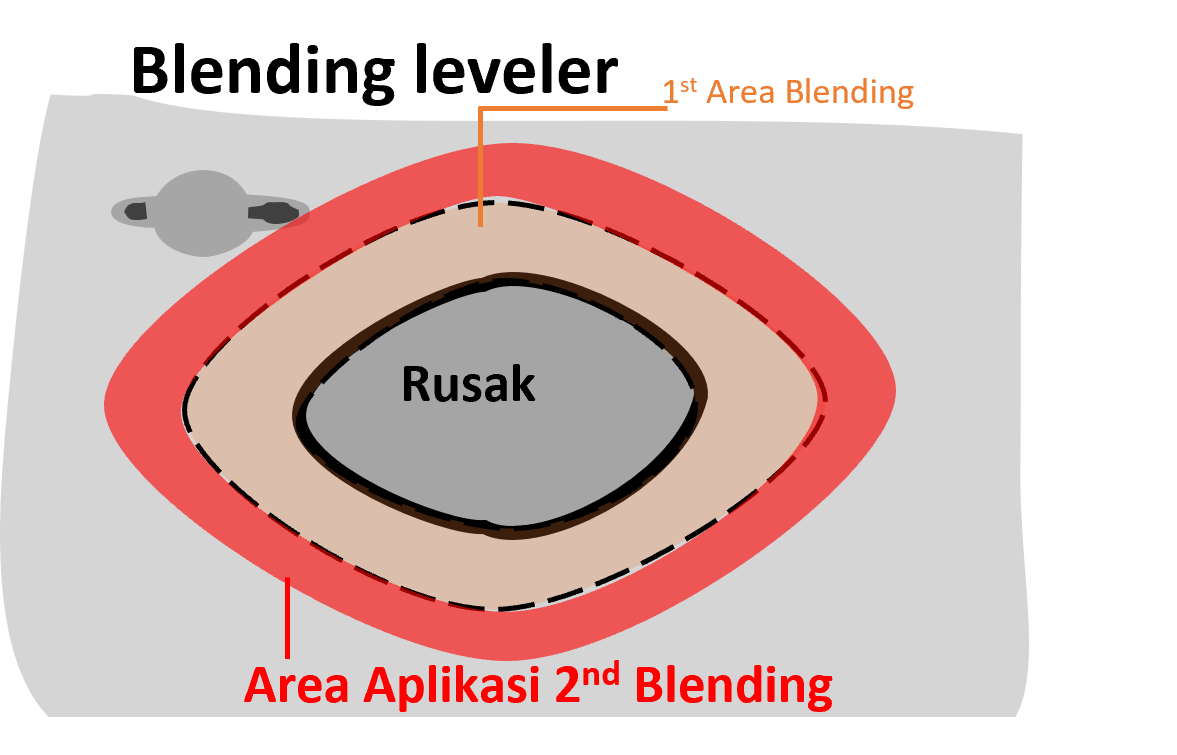

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 1
♦Diaplikasikan diluar area surfacer

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Reducer(High dilution) 110
Retan WB Eco Hardener 10
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

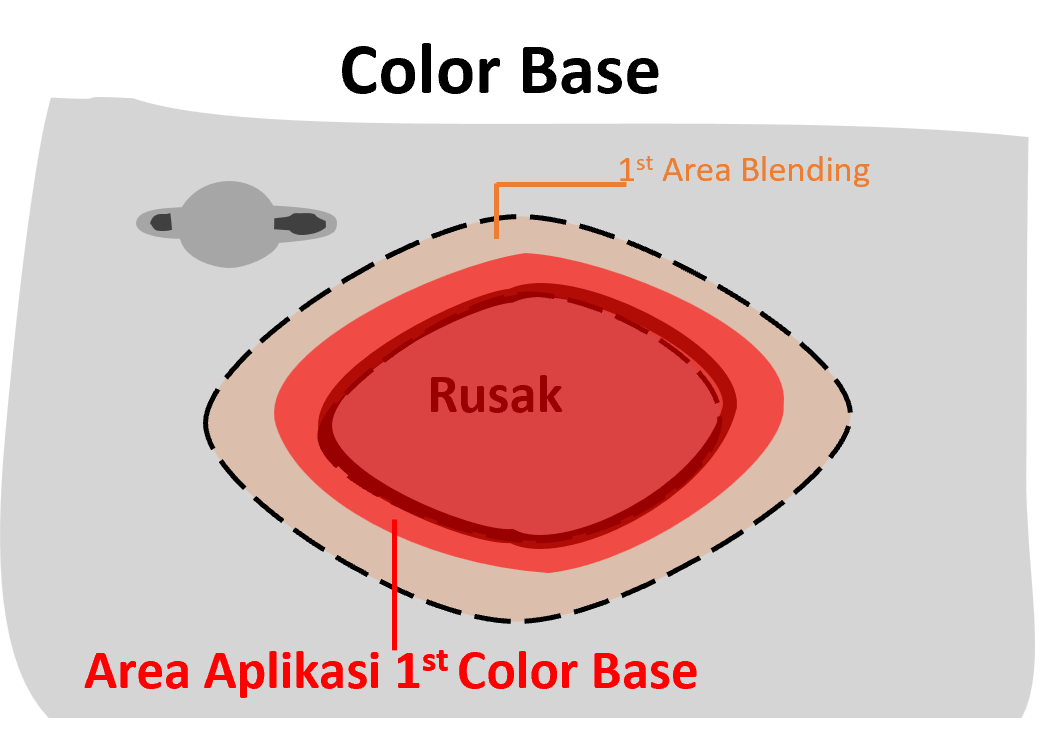

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 20cm 1/2 Normal 10 min
2nd layer 80% 20cm 3/4 Normal 10 min
3rd layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Spray sampai menutup area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(Highdilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 1
♦Diaplikasikan diluar area surfacer

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Colorbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Reducer(High dilution) 110
Retan WB Eco Hardener 10
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

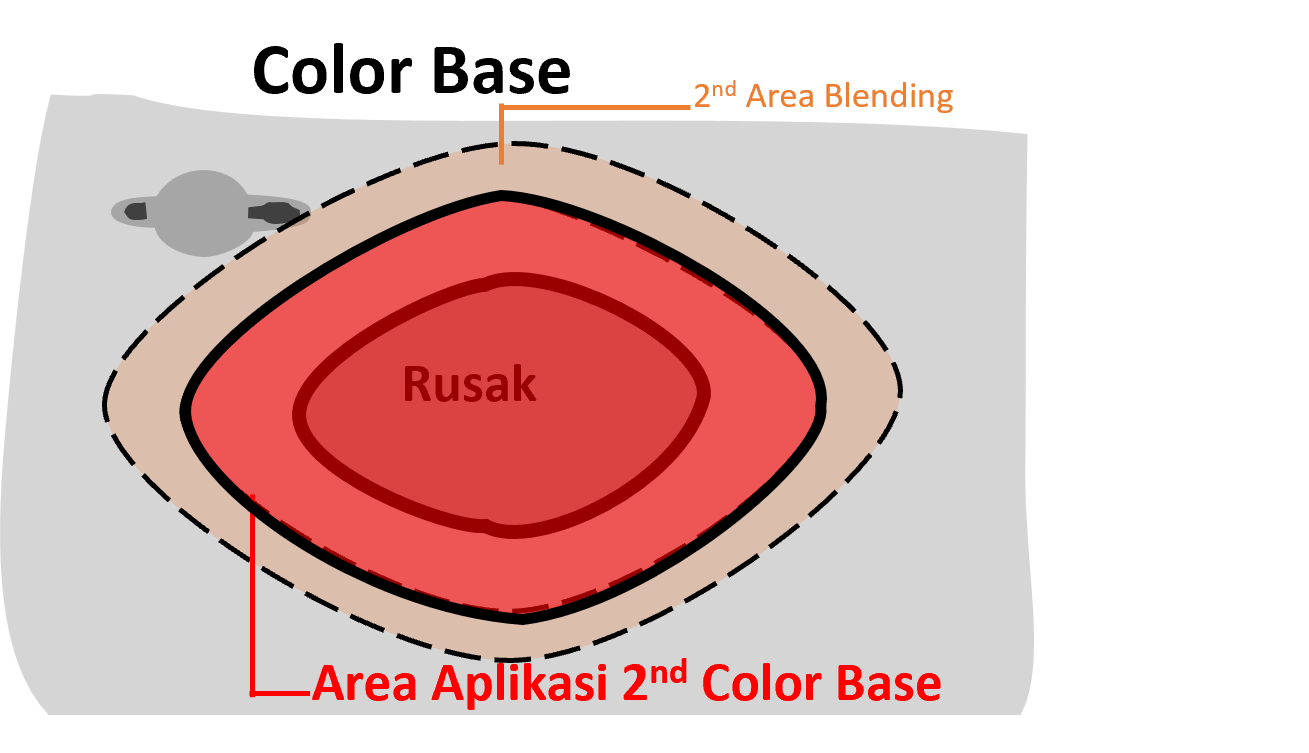

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 20cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan lebih luas dari area Base coat 1

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(High dilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

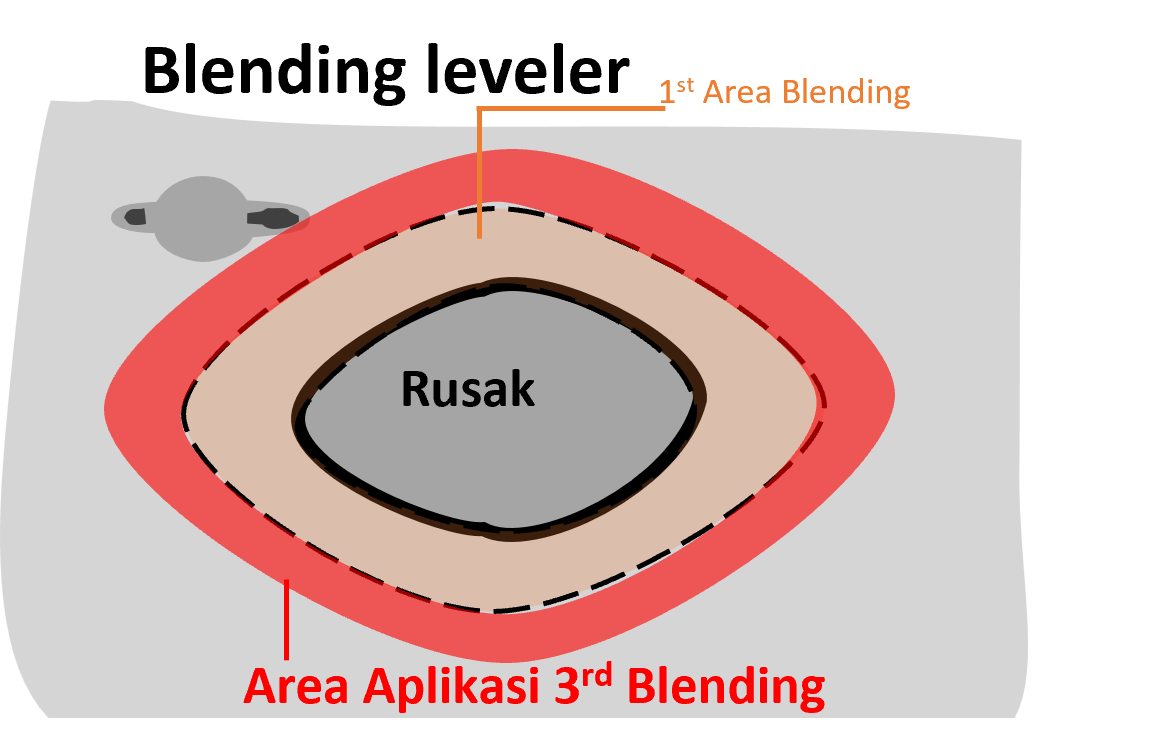

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan diluar area Color Base 2

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV colorbase
Retan WB Eco EV Pearlbase
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

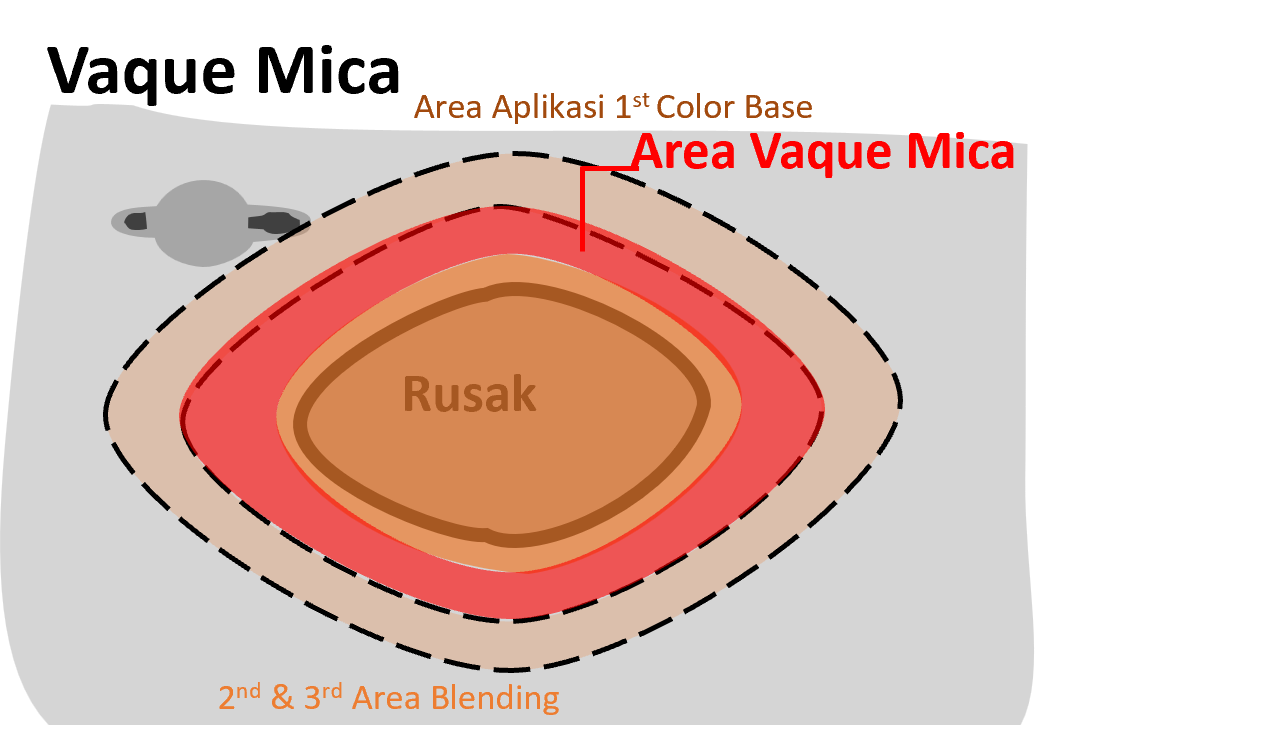

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦ Membuat gradasi Color Base
♦Diaplikasikan menyambung Color Base lama
dan Color Base baru

7 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(Highdilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

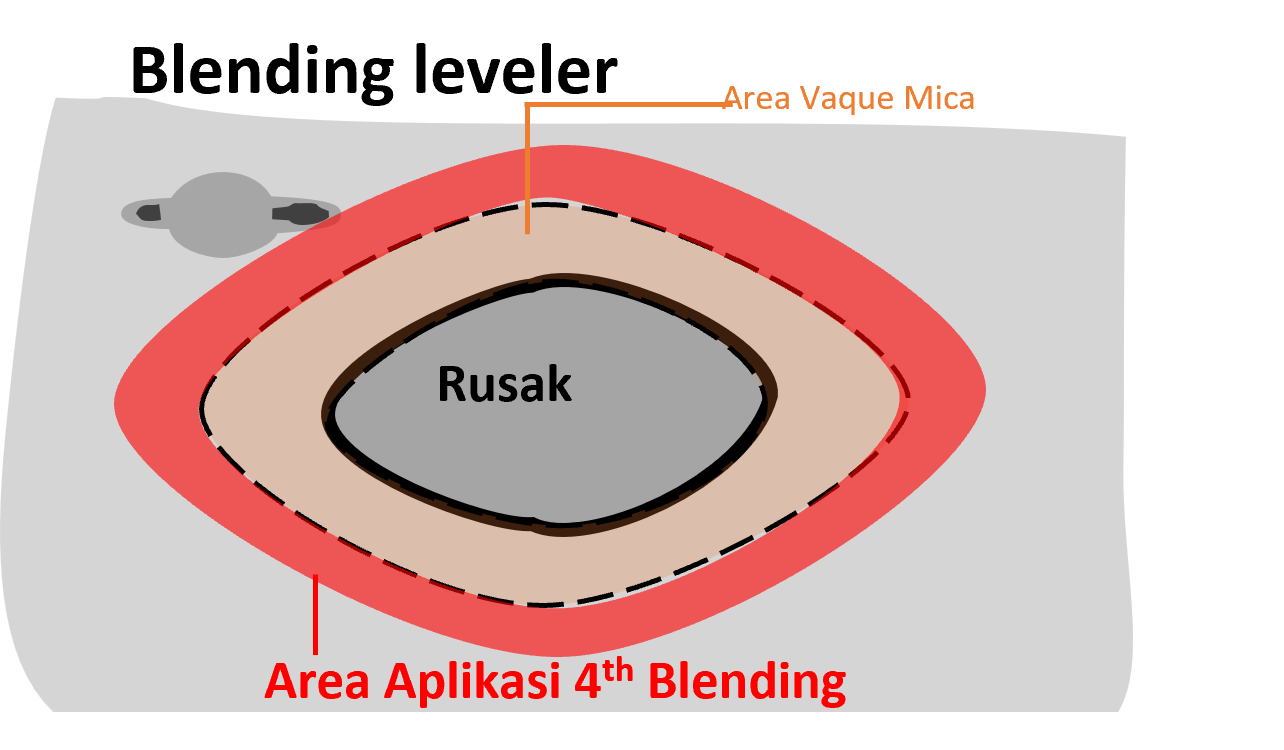

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Pearl Base 1
♦Diaplikasikan diluar area Vaque Mica

8 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Pearlbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Pearlbase 100
Retan WB Eco EV Reducer(High dilution) 180
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

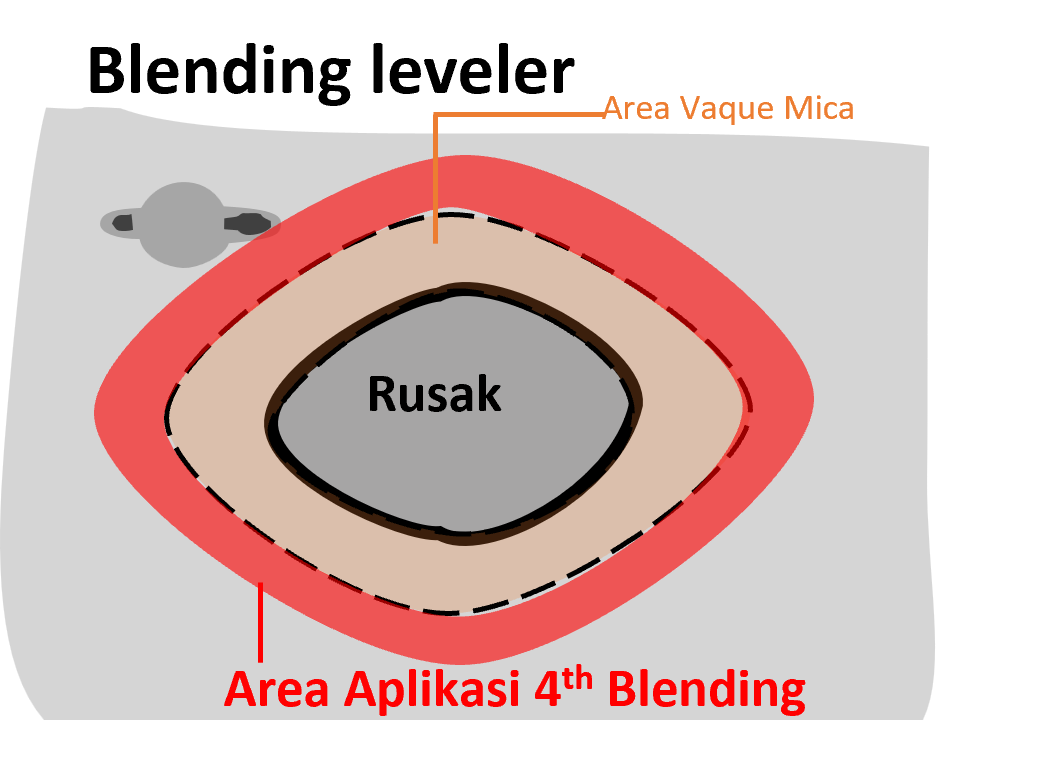

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Color Base 2♦Diaplikasikan lebih luas dari area Color Base 2

9 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Blending Leveler 102
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Blending Leveler 102 100
Retan WB Eco EV Reducer(Highdilution) 200
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Pearl Base 1
♦Diaplikasikan diluar area Vaque Mica

10 th Process

Necessary Qty g
a. Materials
Mixing ratio
Retan WB Eco EV Pearlbase
Retan WB Eco EV Reducer(Low dilution)
Retan WB Eco EV Pearlbase 100
Retan WB Eco EV Reducer(High dilution) 180
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

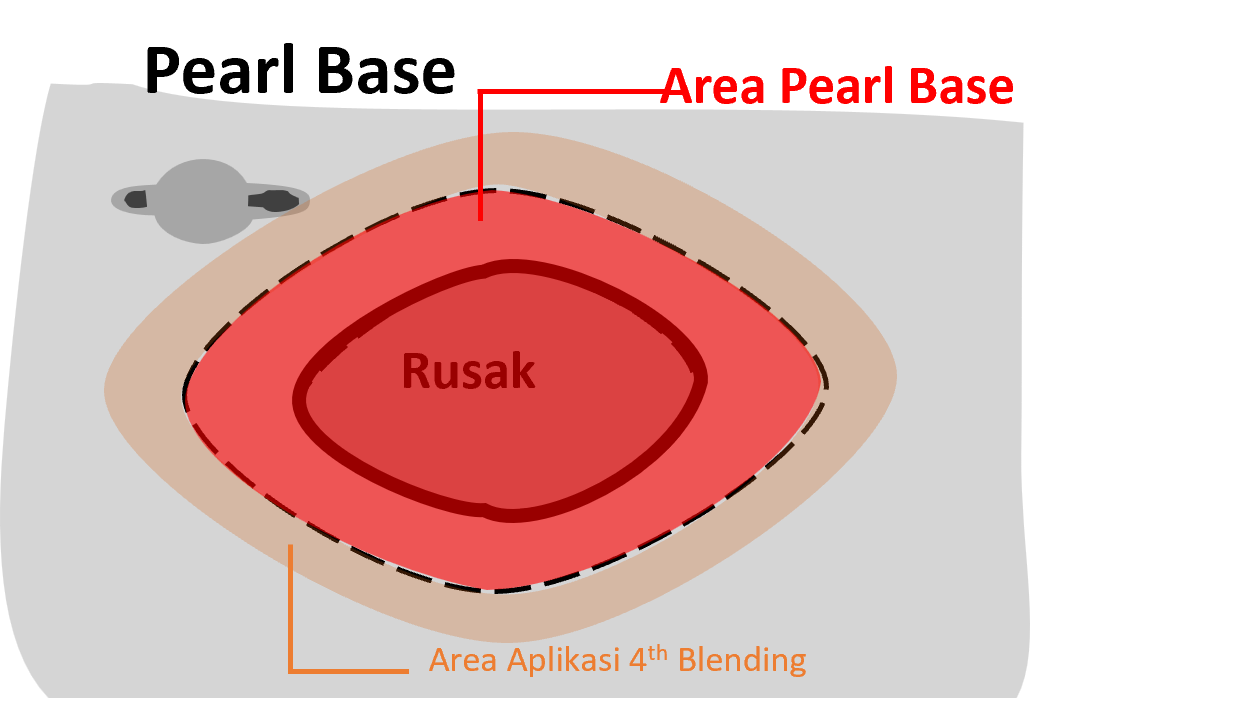

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 10 min
2nd layer 60% 25cm 3/4 Normal 10 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Color Base 2♦Diaplikasikan lebih luas dari area Color Base 1
