Proses ColorBase

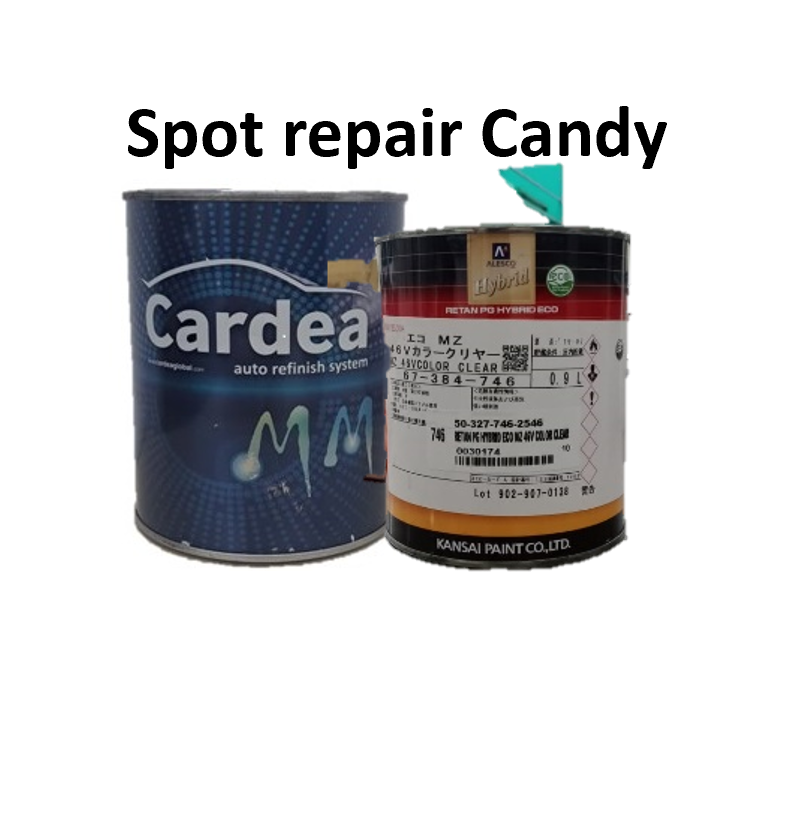

Produk Cardea
Cara Block
Tipe Warna 46V candy color

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA Silver Base (Silver Color)
CARDEA 2K Acrylic Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

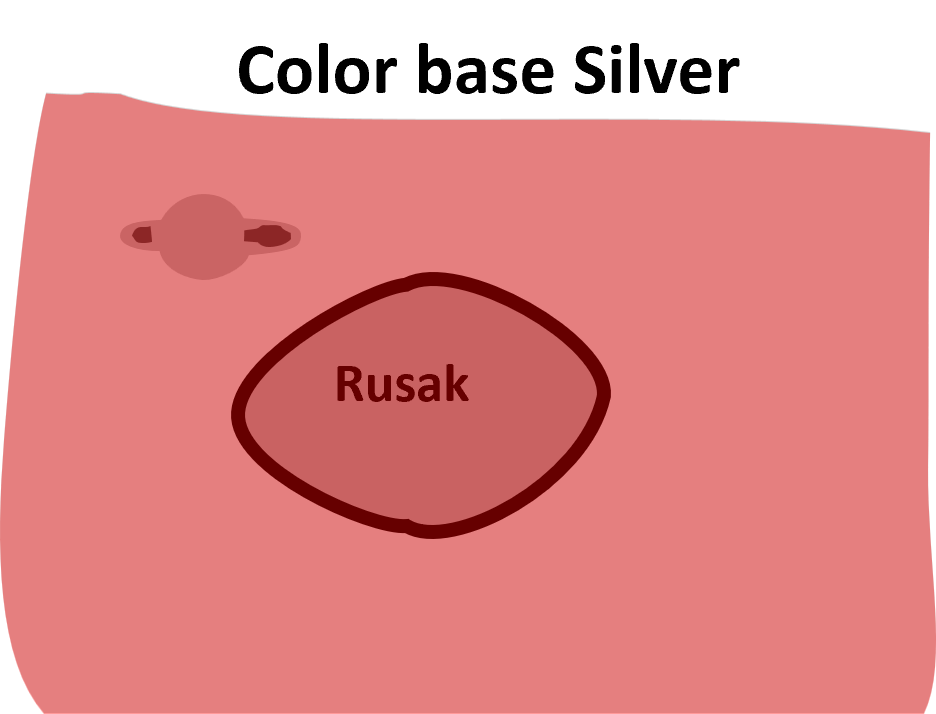

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
2nd layer 80% 15cm 3/4 Normal 5 min
3rd layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
Candy Color Base 46V(Low dilution)
Hi-temp thinner(Low dilution)
Candy Color Base 46V(High dilution) 100
Hi-temp thinner(High dilution) 180
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 5 min
2nd layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
