| Proses | ColorBase |
|---|---|

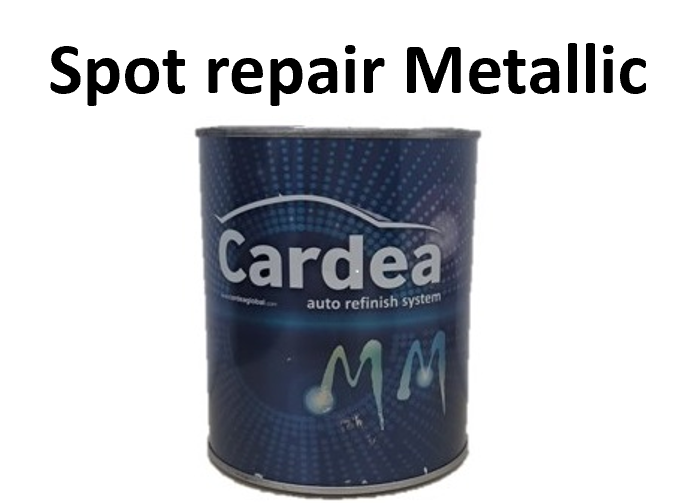

| Produk | Cardea |
| Cara | Spot Repair |
| Tipe Warna | Metallic |
1 st Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| Blending In Leveler | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |

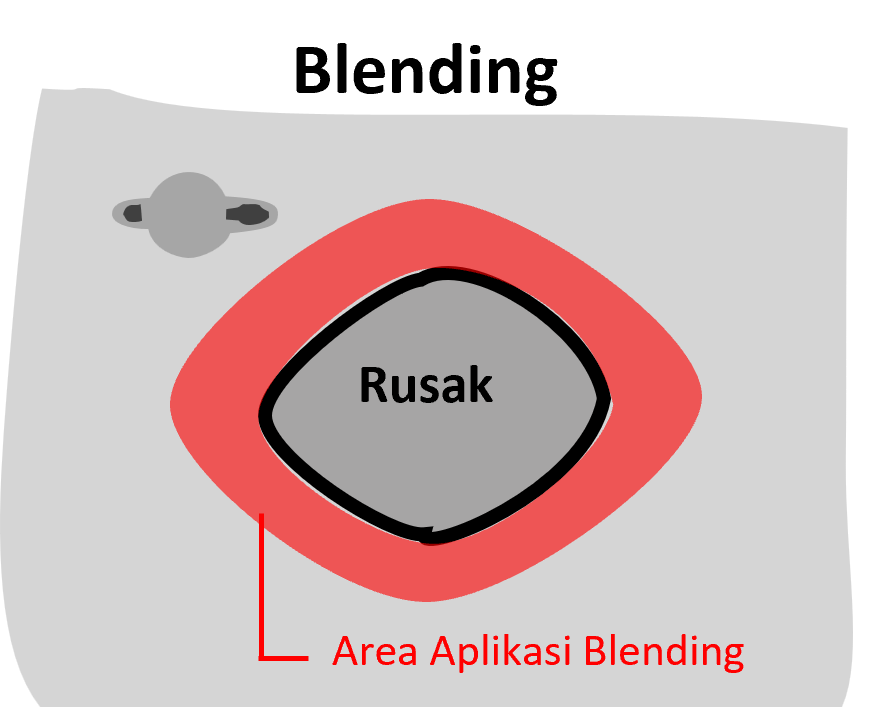

c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 60% | 15cm | 3/4 | Normal | 0 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Menangkap debu spray Lapis 1 ♦Diaplikasikan diluar area surfacer |
2 nd Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| CARDEA colorbase Silver | |
| Hi-temp thinner | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |

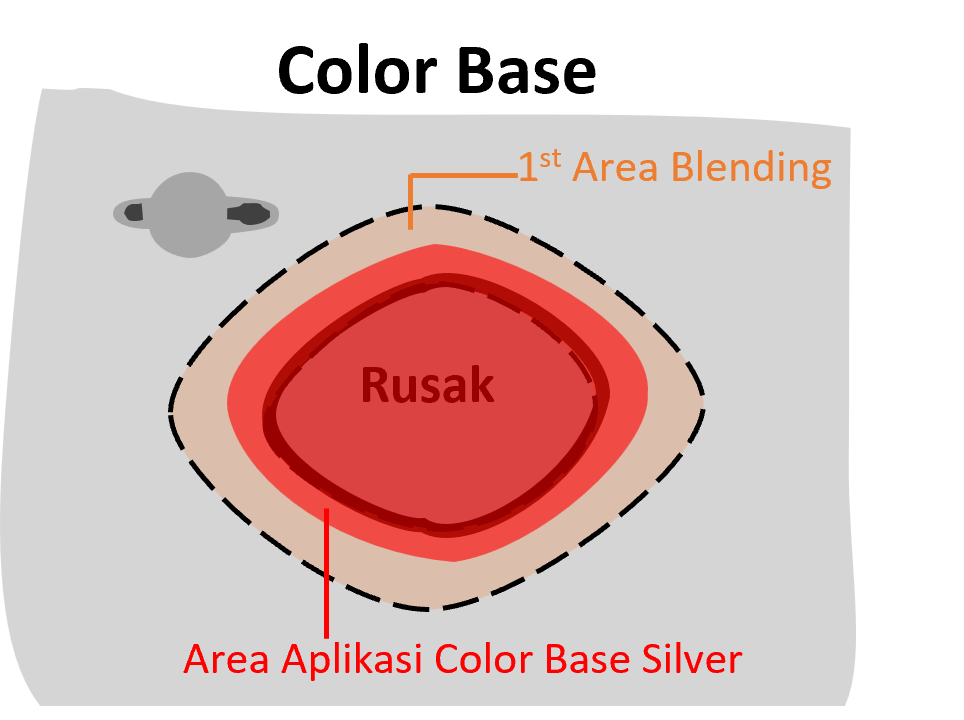

c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 80% | 15cm | 3/4 | Normal | 5 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Menutup area surfacer ♦Diaplikasikan menutupi area surfacer |
3 rd Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| Blending In Leveler | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |
c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 60% | 15cm | 3/4 | Normal | 0 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Menangkap debu spray Lapis 1 ♦Diaplikasikan diluar area surfacer |
4 th Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| CARDEA colorbase (Black Color) | |
| Hi-temp thinner | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |
c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 60% | 15cm | 3/4 | Normal | 0 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Menutup area surfacer ♦Diaplikasikan lebih luas dari area Base coat 1 |
5 th Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| Blending In Leveler | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |

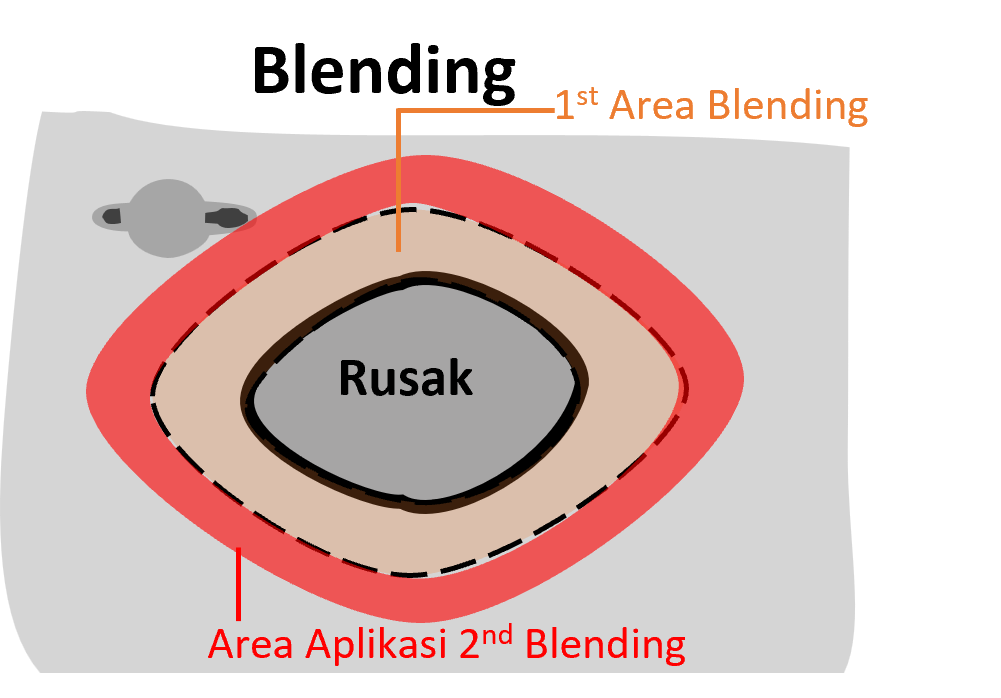

c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 60% | 15cm | 3/4 | Normal | 0 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Menangkap debu spray Lapis 2 ♦Diaplikasikan diluar area Base coat 1 |
6 th Process
Necessary Qty g
a. Materials
| Mixing ratio | |
|---|---|
| CARDEA colorbase Silver | |
| Hi-temp thinner | |
b. Spray gun
| Spray gun setting | |
|---|---|
| Fluid | 2.5-3.0 roatation |
| Pattern | 2.0-3.0 roatation |
| Air pressure | 1.6-1.8 Bar |
| Nozzle size | 1.3-1.4 |

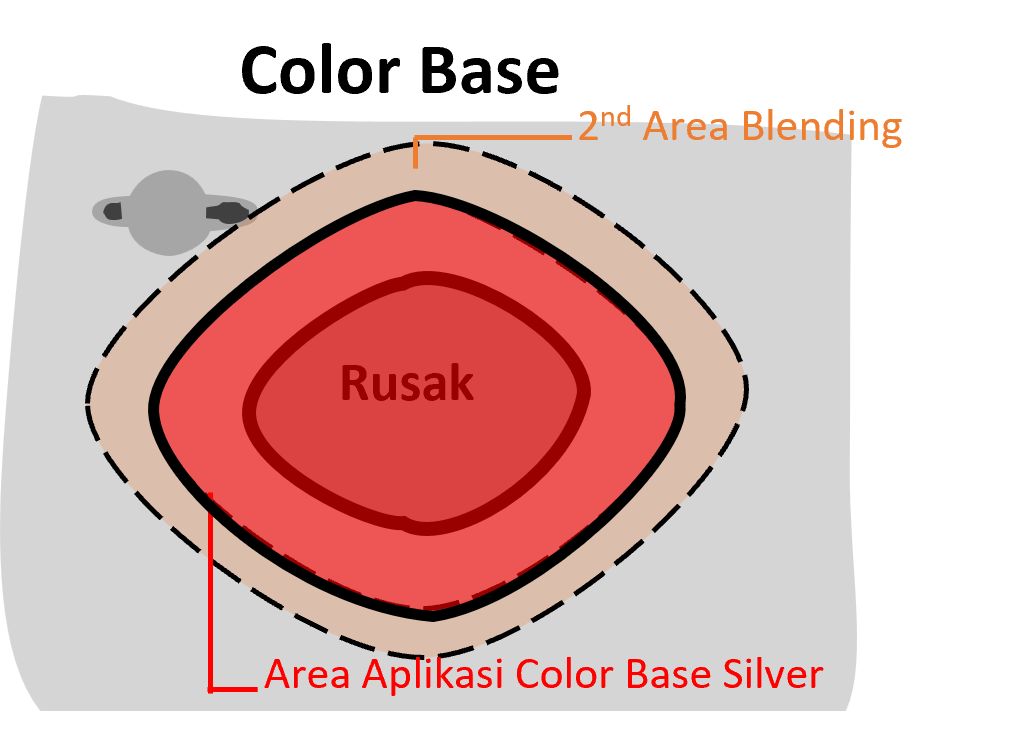

c. Spray area image
d. Wet level index
d. Wet level index
e. Layer
| Wet level | Spray gun distance | Pattern width | Spray gun speed | Setting time | |
|---|---|---|---|---|---|
| 1st layer | 60% | 15cm | 3/4 | Normal | 5 min |
f. Spray movie
| Spray gun setting |
|---|
g. Spray points
| ♦Mottling Corection ♦Diaplikasikan lebih luas dari area Base coat 2 |
