Proses ColorBase

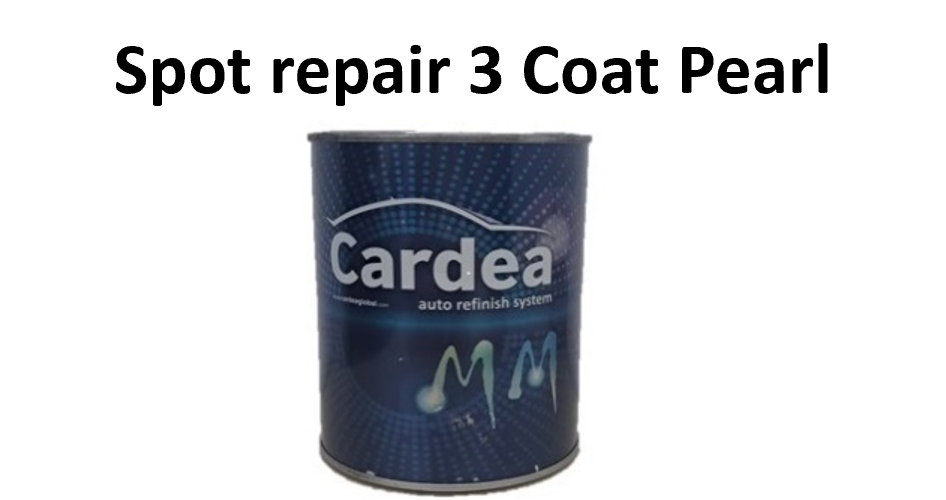

Produk Cardea
Cara Spot Repair
Tipe Warna 3 Coat Pearl

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

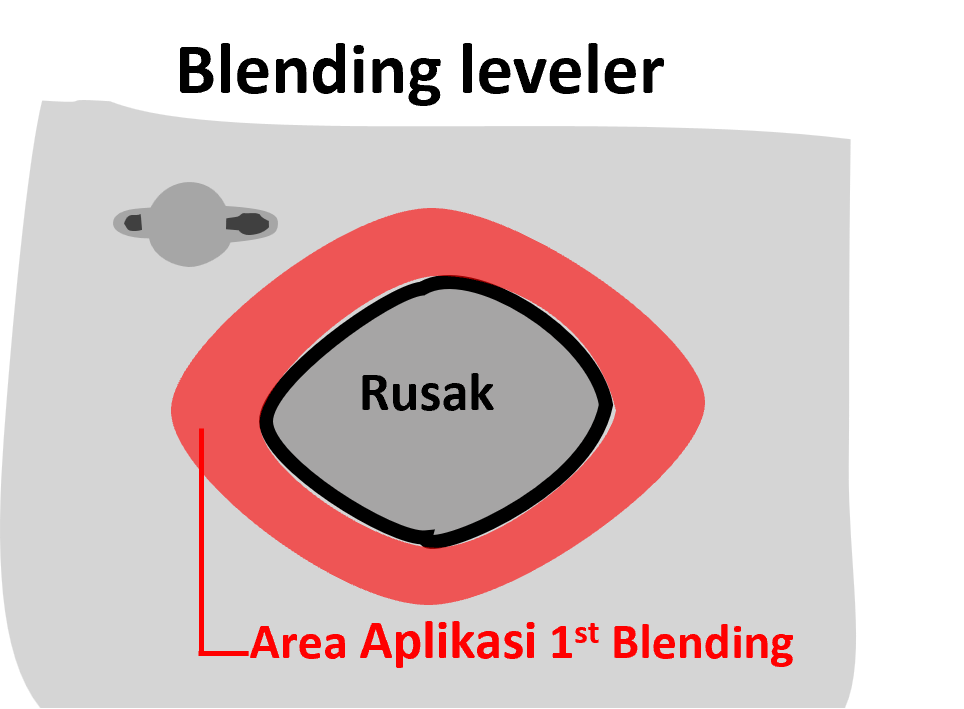

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 1
♦Diaplikasikan diluar area surfacer

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA colorbase
CARDEA 2K Acrylic Hardener
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

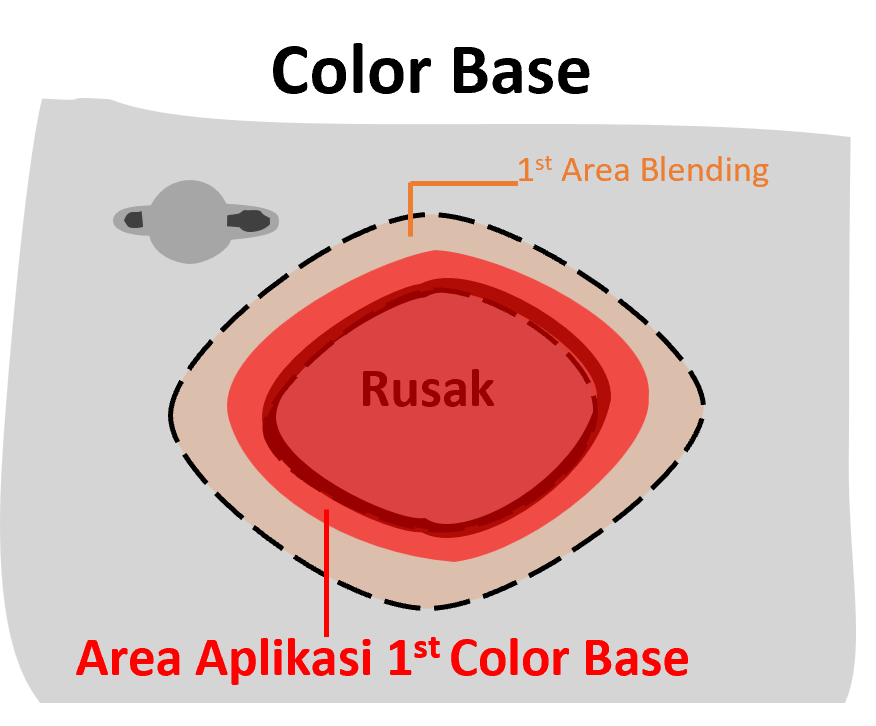

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan menutupi area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

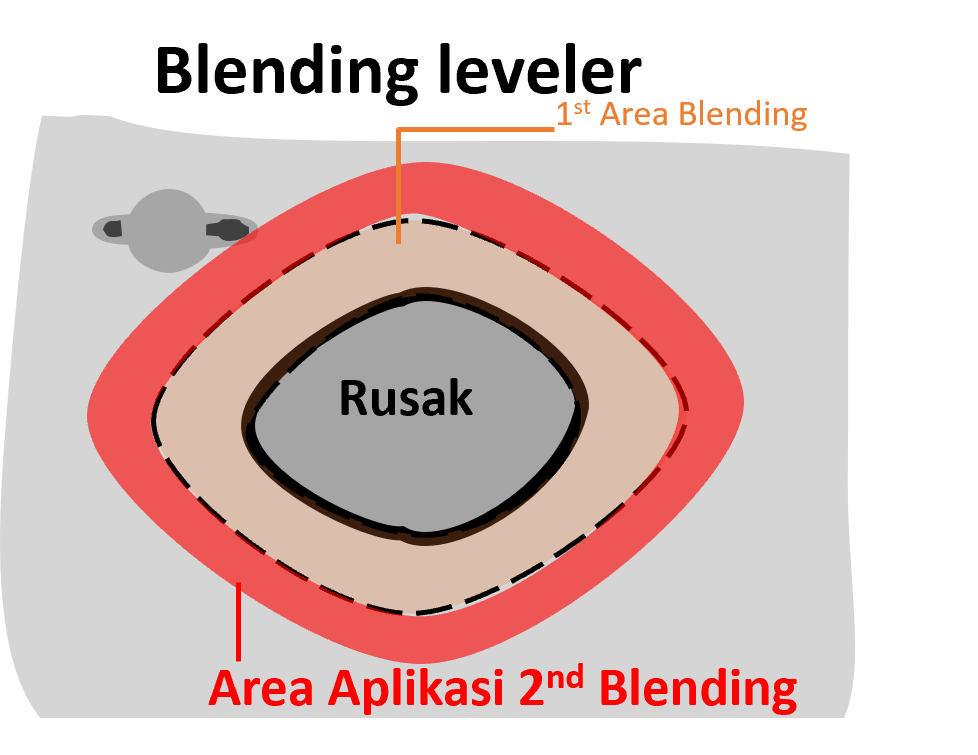

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 1
♦Diaplikasikan diluar area surfacer

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA colorbase
CARDEA 2K Acrylic Hardener
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

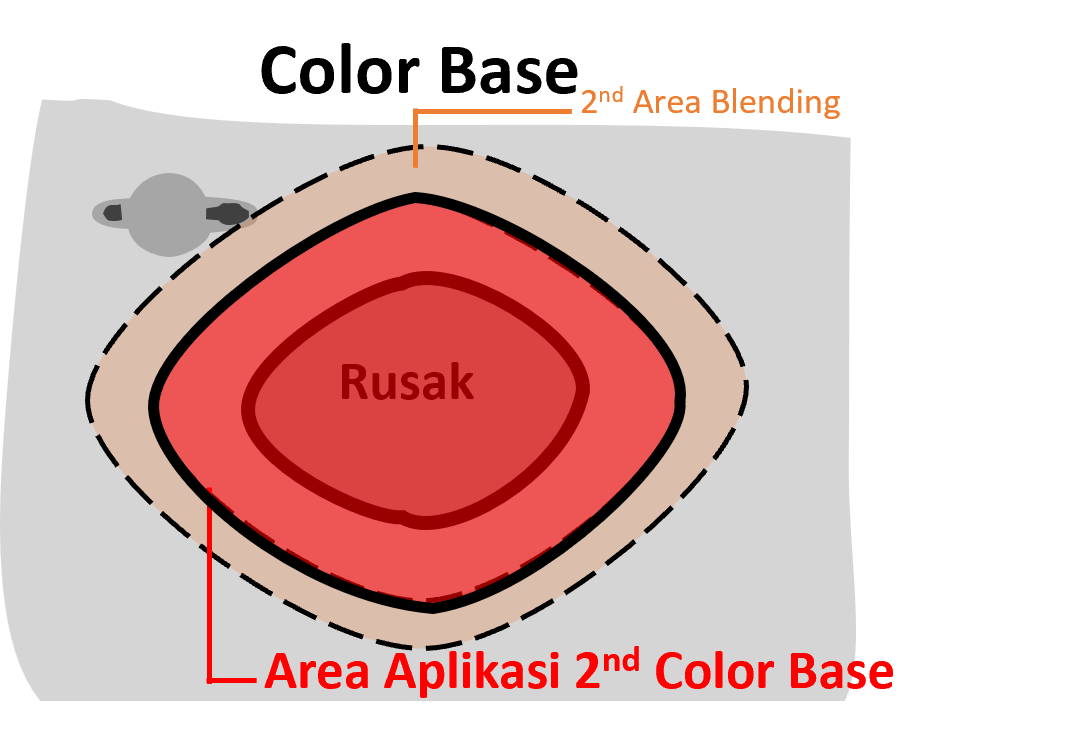

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan lebih luas dari area Base coat 1

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan diluar area Color Base 2

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA colorbase
CARDEA Pearlbase
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

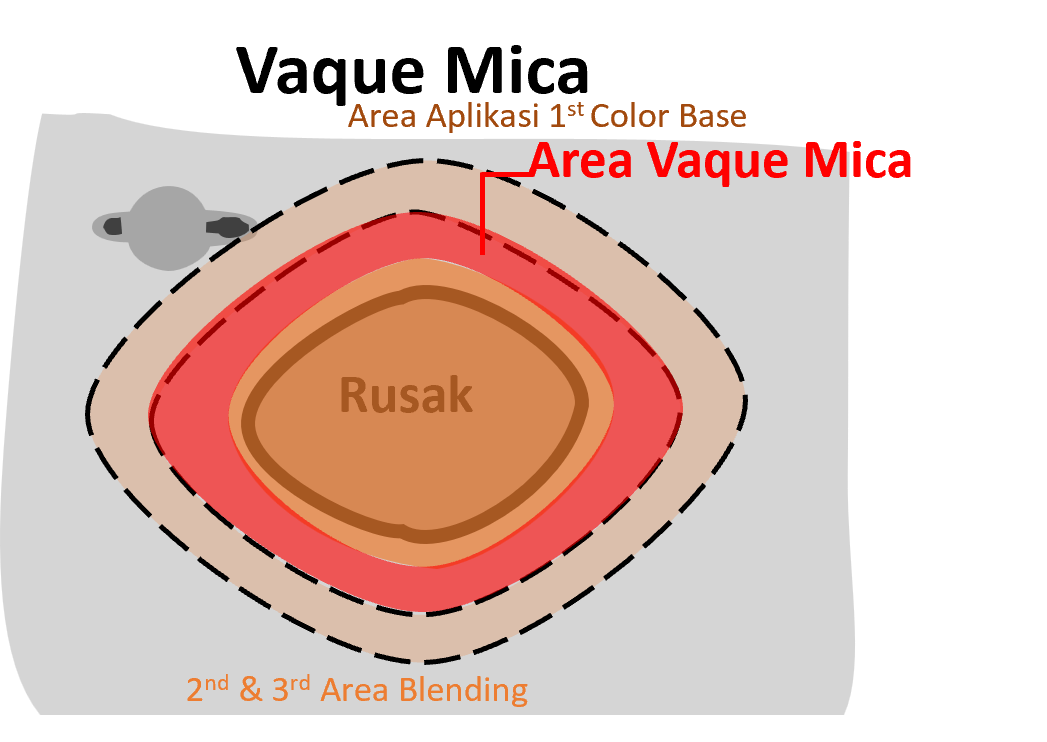

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦ Membuat gradasi Color Base
♦Diaplikasikan menyambung Color Base lama
dan Color Base baru

7 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

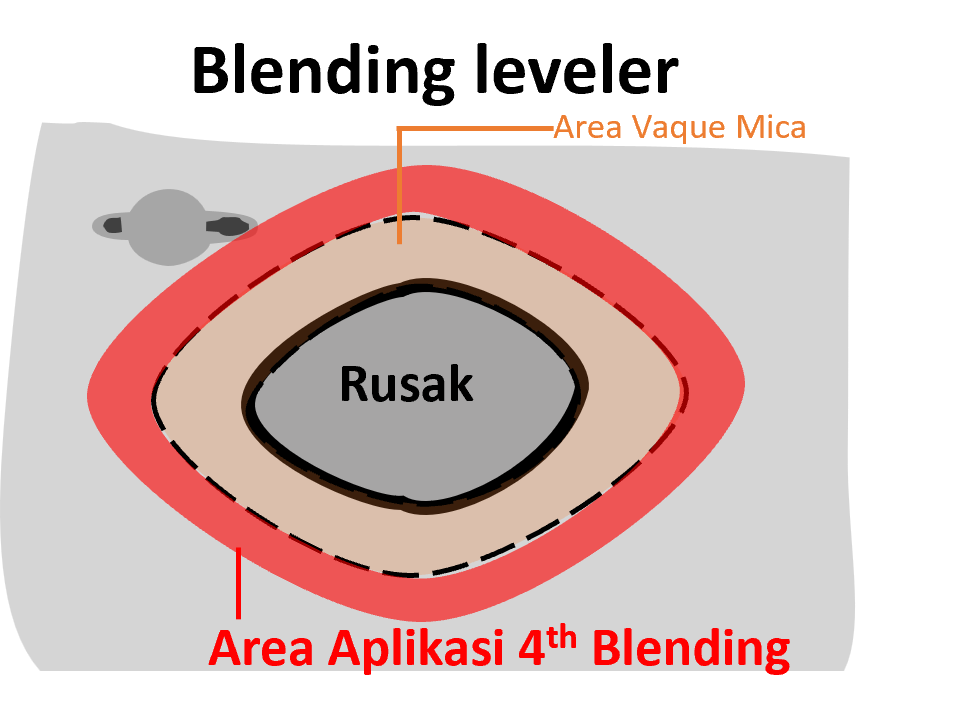

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Pearl Base 1
♦Diaplikasikan diluar area Vaque Mica

8 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA colorbase (White Pearl)
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

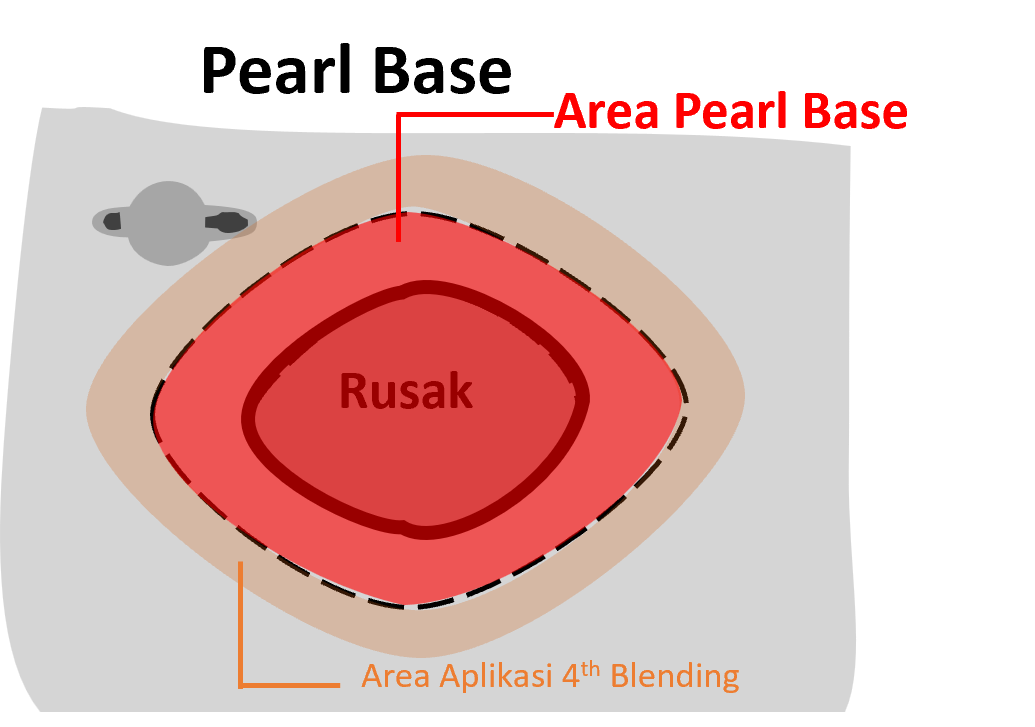

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Color Base 2♦Diaplikasikan lebih luas dari area Color Base 2

9 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points

10 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA Pearlbase
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

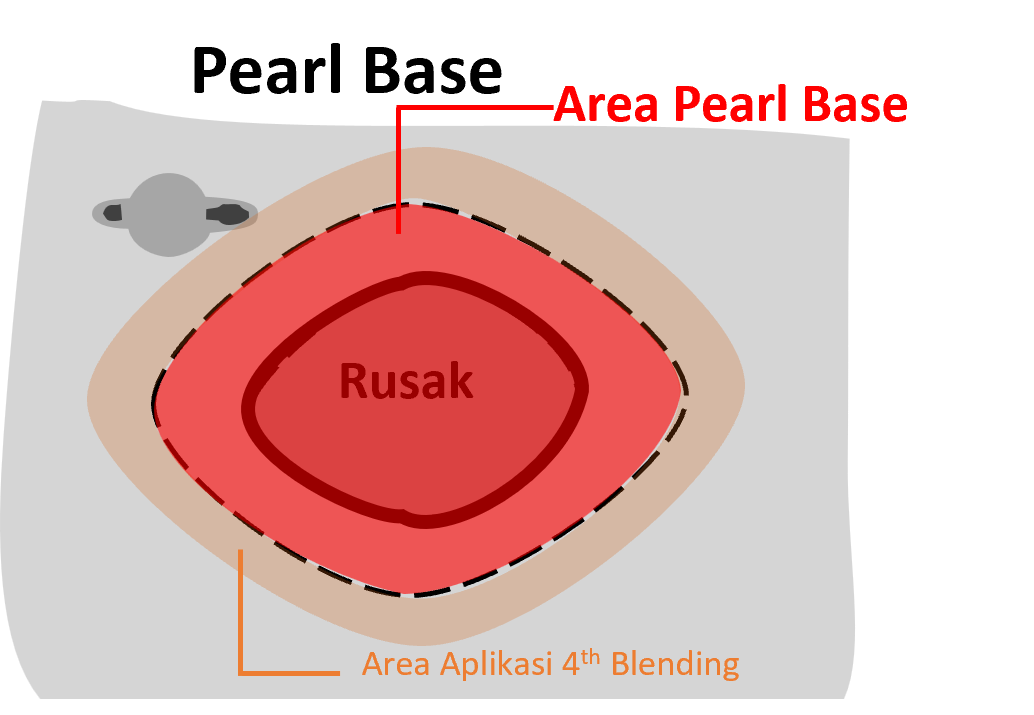

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Color Base
♦Diaplikasikan lebih luas dari area Pearl Base 1
