Proses ColorBase

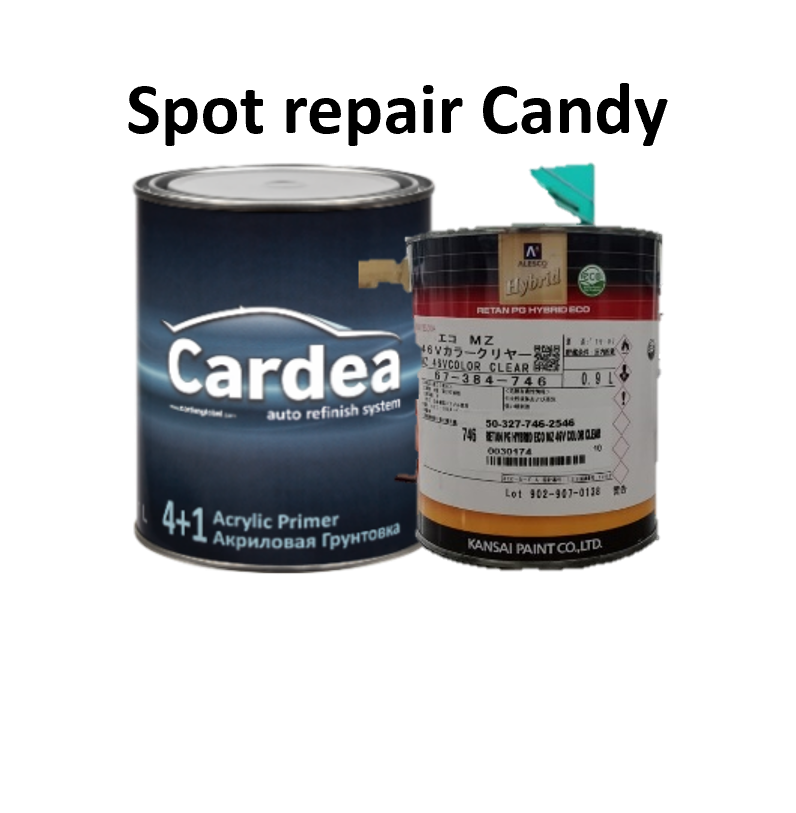

Produk Cardea
Cara Spot Repair
Tipe Warna Candy Color

1 st Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

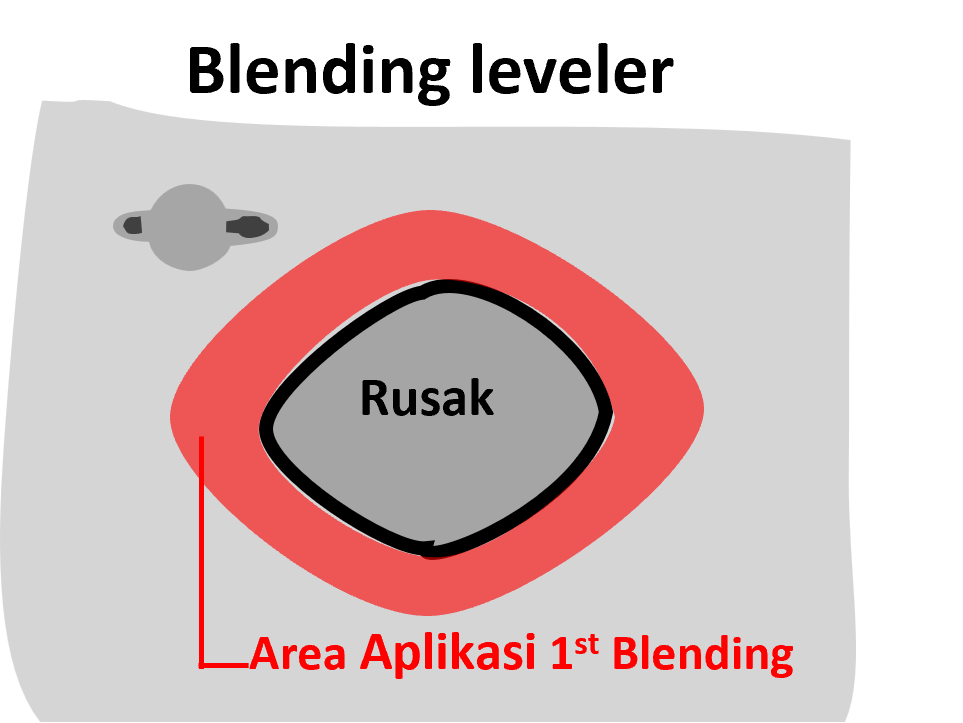

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 1
♦Diaplikasikan diluar area surfacer

2 nd Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA Silver Base (Silver Color)
CARDEA 2K Acrylic Hardener
Hi-temp thinner 0
80 0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

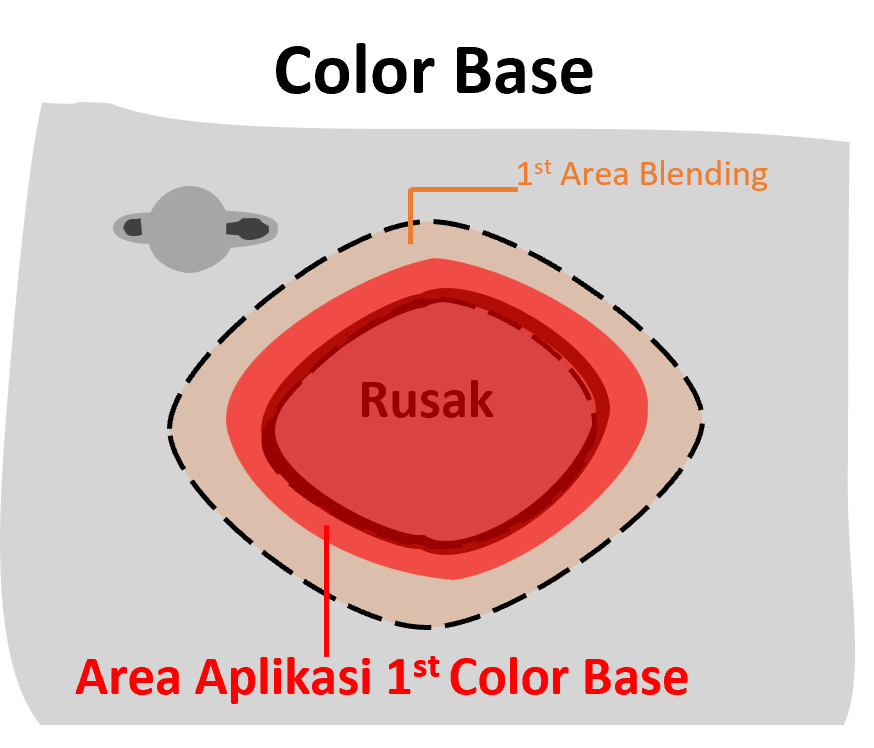

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan menutupi area surfacer

3 rd Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

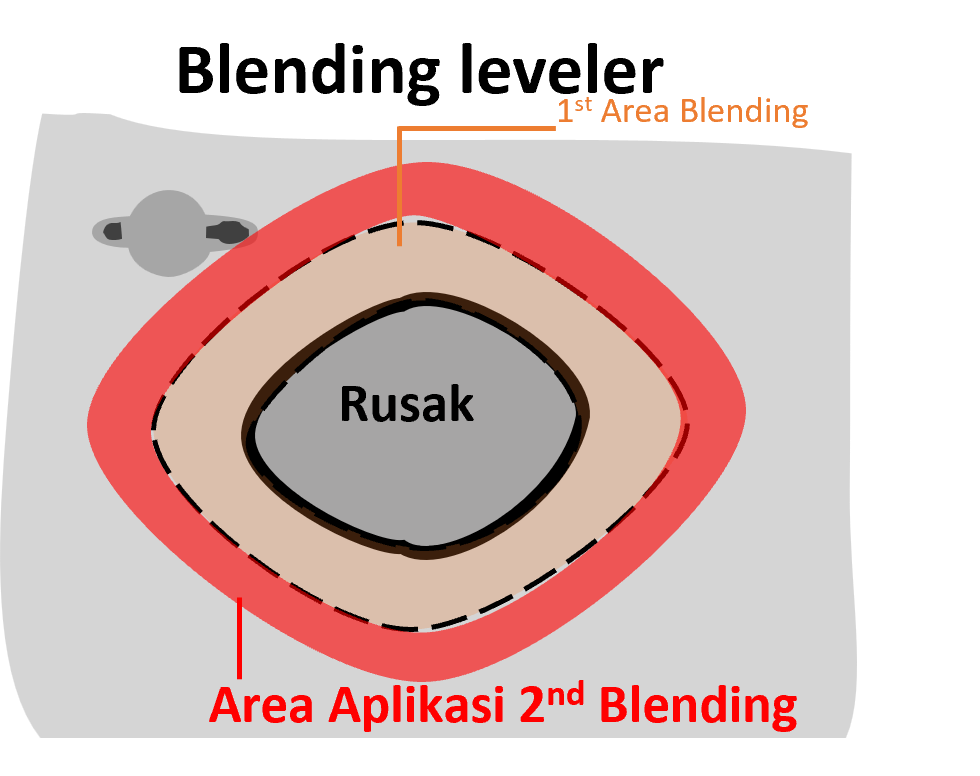

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 2
♦Diaplikasikan diluar area Silver Base 1

4 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA Silver Base (Silver Color)
CARDEA 2K Acrylic Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

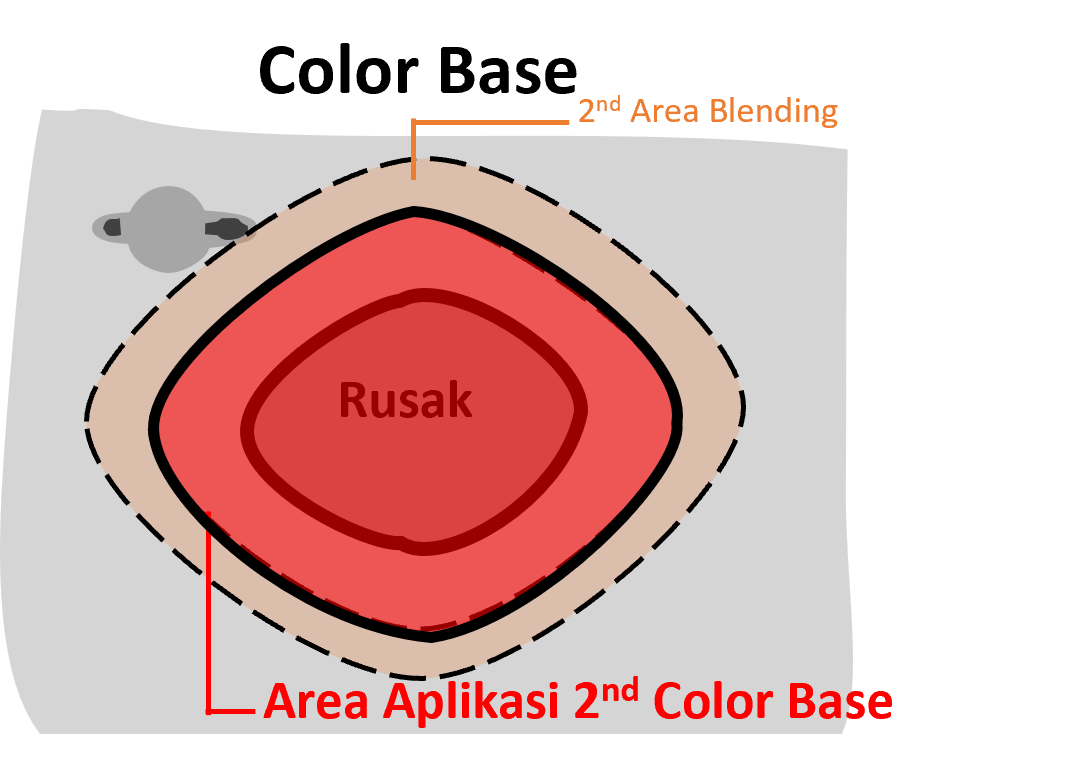

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan lebih luas dari area Base coat 1

5 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

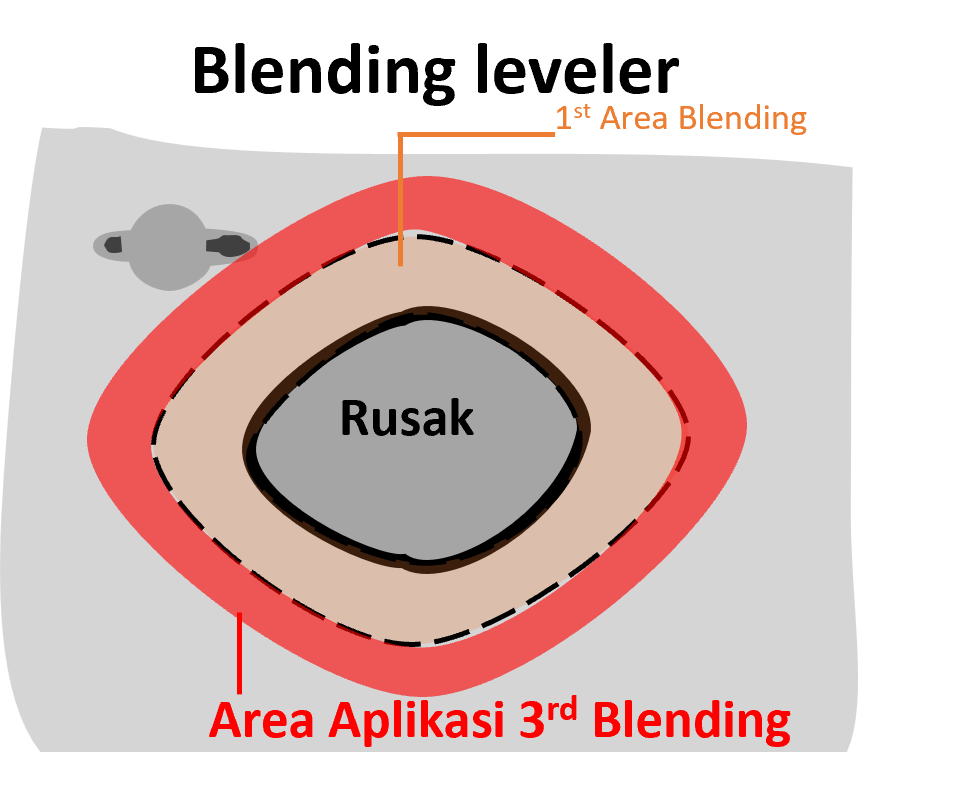

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menangkap debu spray Lapis 2
♦Diaplikasikan diluar area Silver Base 2

6 th Process

Necessary Qty g
a. Materials
Mixing ratio
CARDEA Silver Base (Silver Color)
CARDEA 2K Acrylic Hardener
Hi-temp thinner 80
0
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

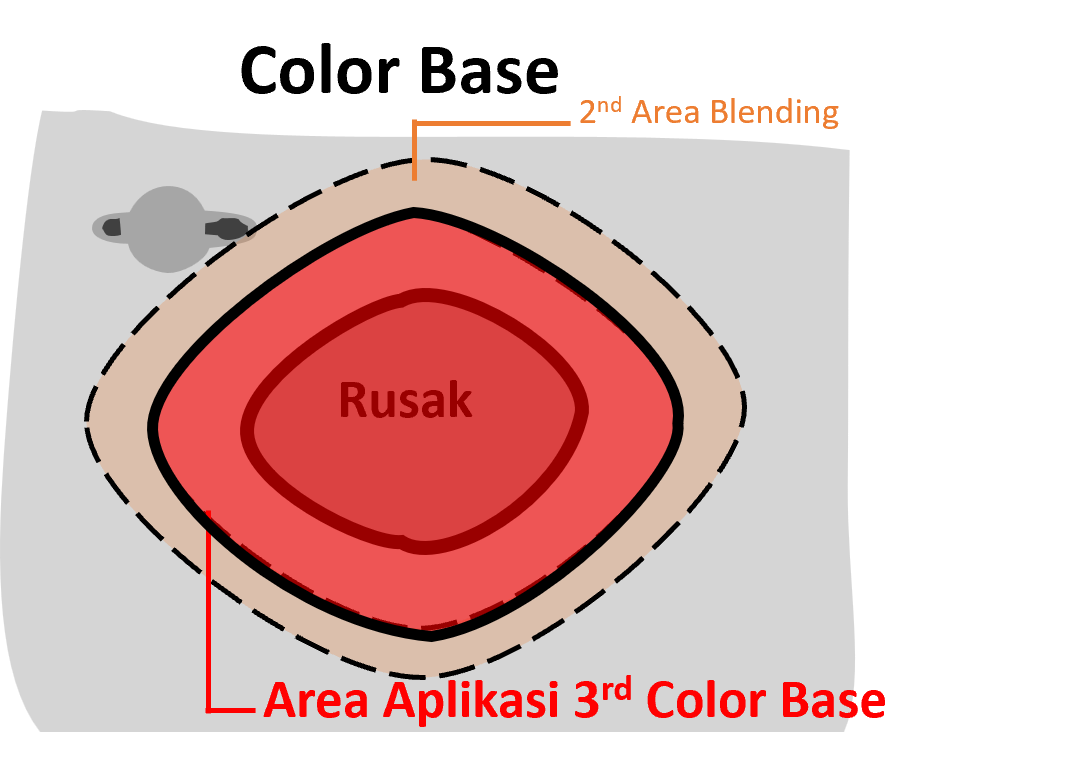

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦ Mottling Corection
♦Diaplikasikan menutupi area lapis 2

7 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan diluar area Color Base 2

8 th Process

Necessary Qty g
a. Materials
Mixing ratio
Solid Base
Candy Base
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

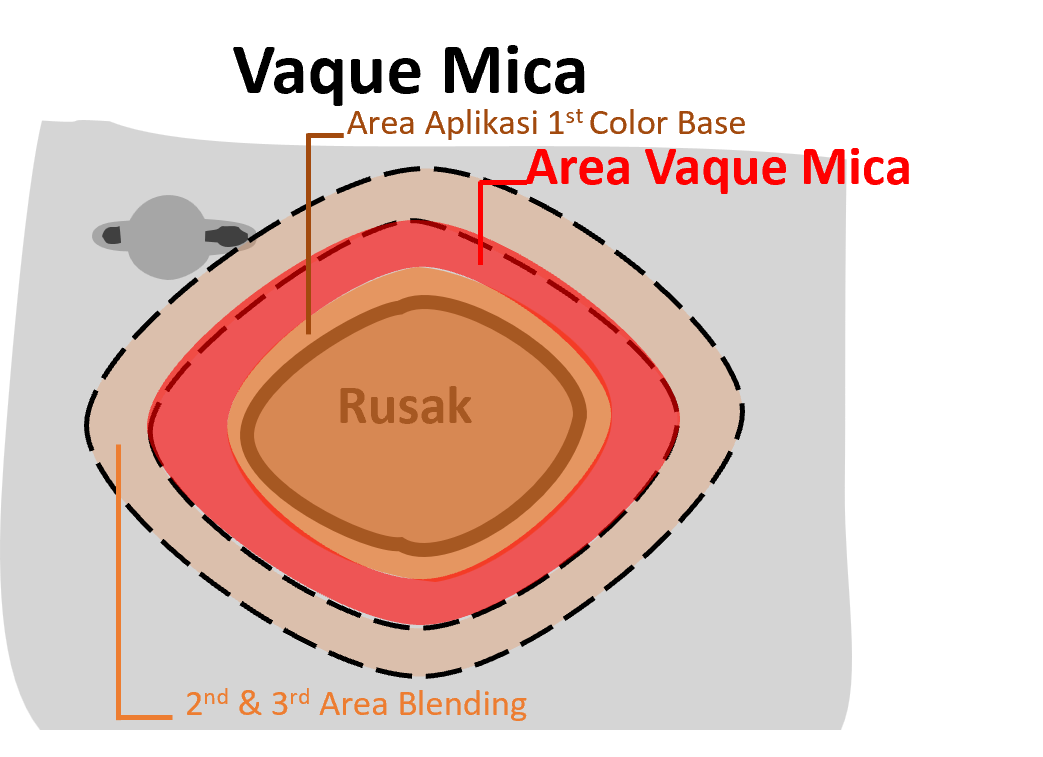

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 80% 15cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Membuat gradasi Color Base
♦Diaplikasikan menyambung Color Base lama
dan Color Base baru

9 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Menutup area surfacer
♦Diaplikasikan diluar area Silver Base 2

10 th Process

Necessary Qty g
a. Materials
Mixing ratio
Candy Color Base 46V
Hi-temp thinner(Low dilution)
Candy Color Base 46V 100
Hi-temp thinner(High dilution) 120
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

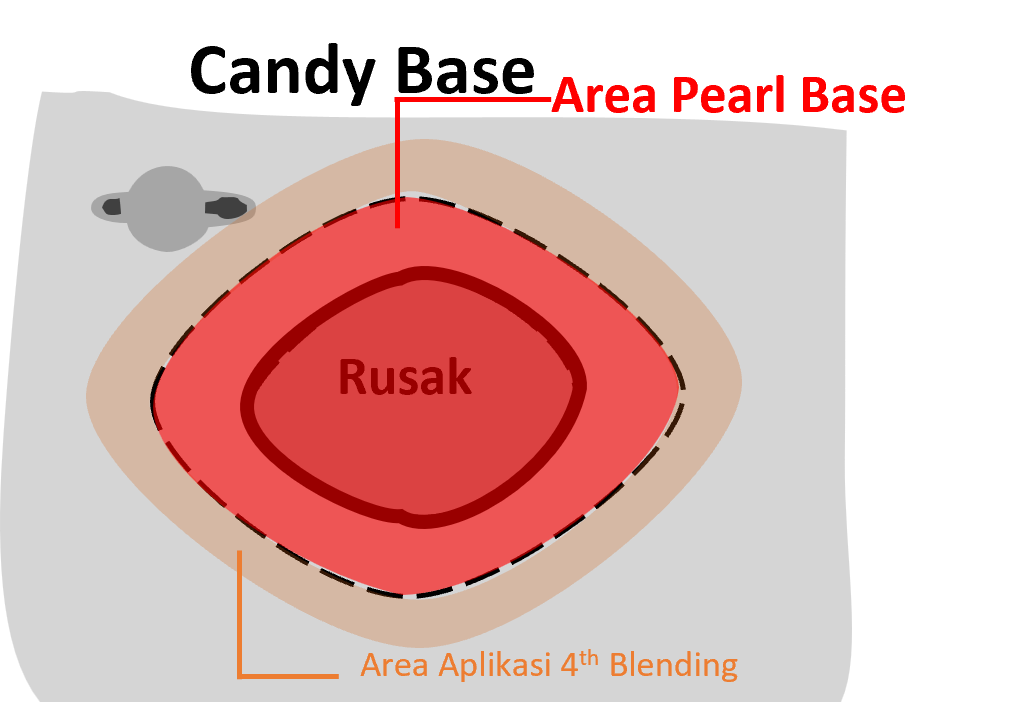

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 25cm 3/4 Normal 5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Silver Base 3
♦Diaplikasikan lebih luas dari area Silver Base 3

11 th Process

Necessary Qty g
a. Materials
Mixing ratio
Blending In Leveler
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4
c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 15cm 3/4 Normal 0 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Silver Base 2
♦Diaplikasikan lebih luas dari area Vaque Candy

12 th Process

Necessary Qty g
a. Materials
Mixing ratio
Candy Color Base 46V
Hi-temp thinner
b. Spray gun
Spray gun setting
Fluid 2.5-3.0 roatation
Pattern 2.0-3.0 roatation
Air pressure 1.6-1.8 Bar
Nozzle size 1.3-1.4

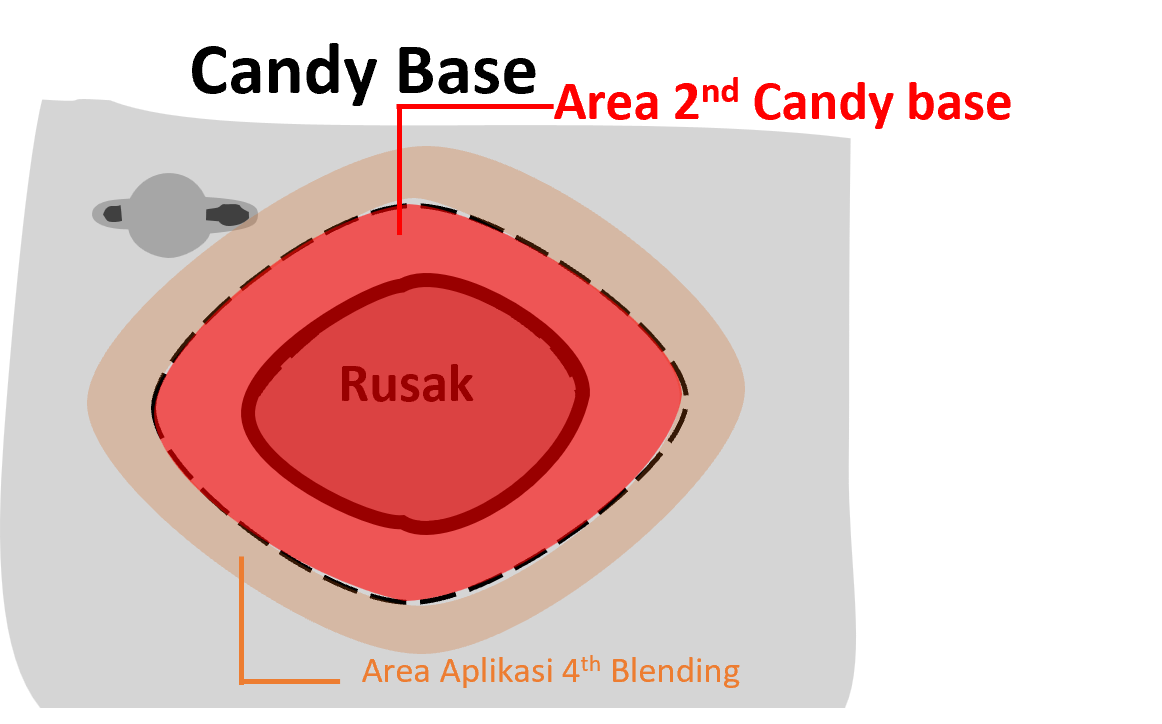

c. Spray area image

d. Wet level index
e. Layer
Wet level Spray gun distance Pattern width Spray gun speed Setting time
1st layer 60% 20cm 3/4 Normal 3-5 min
f. Spray movie
Spray gun setting
g. Spray points
♦Aplikasi diatas area Silver Base 2
♦Diaplikasikan lebih luas dari area Candy Color 1
